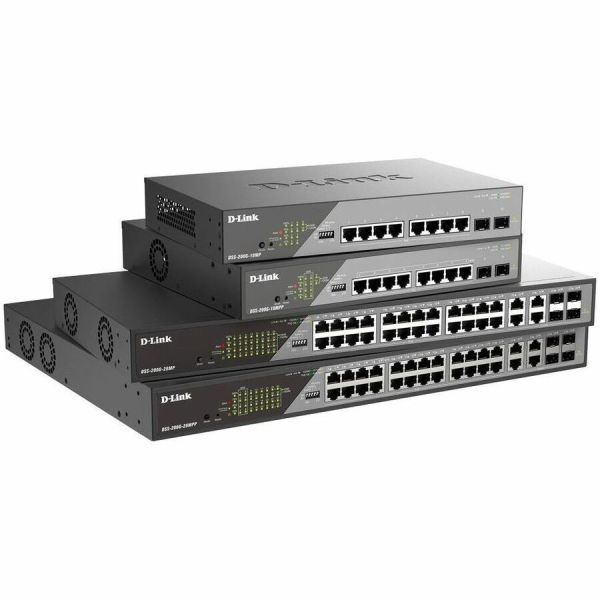

D-Link Gigabit PoE Smart Surveillance Switches

Marketing Information

The DSS-200G Series Gigabit PoE Smart Surveillance Switches are designed to meet surveillance requirements for businesses of all sizes. With features like support for high-powered PTZ cameras, Auto Surveillance VLAN, and surge protection, these switches are perfect for IP surveillance setups. They offer a surveillance-enhanced interface, diagnostic tools, and energyefficient technologies for flexible surveillance solutions.

DSS-200G Series offers comprehensive surveillance solutions with optimised traffic handling, user-friendly interface, PoE support, easy configuration, troubleshooting tools, and simplified deployment.

Surveillance Traffic Optimisation

The Auto Surveillance VLAN feature separates surveillance dev...ices' traffic from the rest of thenetwork, ensuring data security and prioritising surveillance traffic. This reduces video freezing

or delays in live streams. Using a single switch for surveillance and data networks eliminates the need for dedicated hardware and lower maintenance costs.

PoE Support

All DSS-200G Series switches support PoE, enabling faster deployment of IP cameras, VoIP phones, and access points. Some models provide high-power PoE++, delivering up to 90 watts on selected ports for devices like video conferencing systems and displays.

Intuitive Web Interface

The intuitive web interface provides easy access to surveillance features, offering a choice between Standard and Surveillance modes during setup. The interface displays connected devices and supports D-Link and third-party IP cameras and NVRs. It includes monitoring, management, and troubleshooting tools, making surveillance network management convenient.

DIP Switch for Easy Configuration

The switches also feature a DIP switch for easy configuration and quick adjustment of application settings without the need to access the web configuration. It allows you to quickly enable and disable functions such as QoS, Extend (up to 250 metres connection) , Port Isolation, PD-Alive and STP (Spanning Tree Protocol).

Easy Troubleshooting

Troubleshooting is simplified with Loopback Detection, which identifies and resolves accidental network loops, and Cable Diagnostics, which remotely tests copper cable quality and detects errors.

Easy to Deploy

The interactive setup wizard facilitates quick deployment, allowing users to choose interface modes, IP address allocation, and set passwords. It automatically configures features like Loop Detection, DHCP Snooping, SNMP, and Surveillance VLAN. The switch detects D-Link and third-party devices for easy administration.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DSS200G28MPPE
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Series: DSS-200G
Product Name: Gigabit PoE Smart Surveillance Switches
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 28
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet PoE
• 4 x Gigabit Ethernet Combo
• 1 x Gigabit Ethernet alarm input

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.1w
• IEEE 802.3at
• IEEE 802.3az
• IEEE 802.3bt

Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 518 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source:

• Power Adapter
• PoE++

Power Consumption: 579.30 W
Physical Characteristics
Color Family: Silver
Product Color: Silver
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 44 mm
Width: 4400 mm
Depth: 330 mm
Weight (Approximate): 4.71 kg
Miscellaneous
Application/Usage:

• Surveillance
• Enterprise
• Business

Warranty
Limited Warranty: 5 Year
