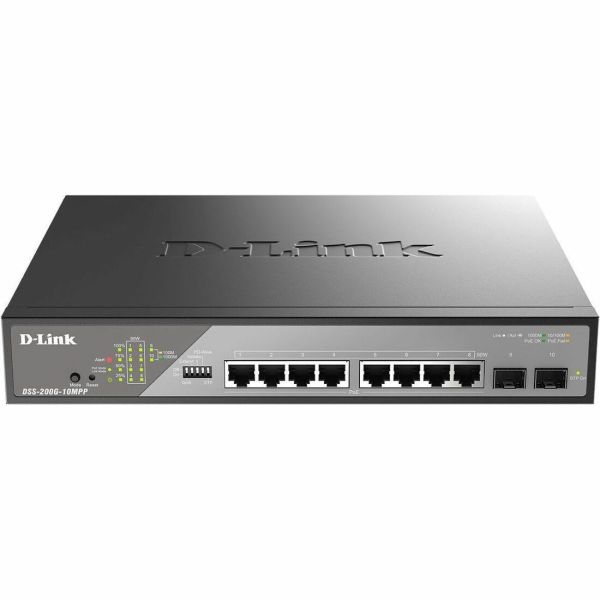

D-Link DSS-200G 8-Port Ethernet Switch

Marketing Information

The DSS-200G Series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, automatic Surveillance VLAN, and 6 kV surge protection make the DSS-200G Series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.

Easy to Deploy

An interactive setup wizard removes the complexity from installing the switch for the first time. It allows you to choose the web interface mode (Standard or Surveillance), the IP address allocation method (static or DHCP), and the admi...nistrator user name and password. This completes the initial setup of the switch and automatically configures features such as Loop Detection, SNMP and Surveillance VLAN. An informative quick start guide shows you how to use the network diagram, and a network overview is displayed on the next page. D-Link and 3rd party devices are automatically detected and shown on the network overview page for easy administration.

Surveillance Traffic Optimization

The DSS-200G Series supports the automatic Surveillance VLAN feature. This automatically detects surveillance devices and puts them into the Surveillance VLAN, segmenting their traffic from the rest of the network. The feature enhances the security of the data and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware and reducing maintenance costs.

Intuitive Web Interface

A redesigned Surveillance interface makes surveillance features more accessible than ever. The choice between Standard and Surveillance modes can be made during switch setup, allowing the user to choose the interface that best suits their requirements. A network overview shows which devices are connected to which ports, and ONVIF device support allows the switch to recognize both D-Link and third party IP cameras and Network Video Recorders (NVRs). With monitoring, management, and troubleshooting tools built into a single interface, the DSS200G Series provides everything you need to manage your surveillance network.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DSS200G10MPPB
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Series: DSS-200G
Product Name: DSS-200G 8-Port Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x 10/100/1000BASE-T Mbps PoE Ports
• 2 x Gigabit SFP Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Fast Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 1000Base-X

Maximum Data Transfer Rate: 125 MB/s
I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.3x
• IEEE 802.3az

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 242 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source:

• Power Supply
• PoE

Power Consumption: 267.50 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Desktop

Height: 43.9 mm
Width: 279.9 mm
Depth: 229.9 mm
Weight (Approximate): 2.05 kg
Miscellaneous
Package Contents:

• DSS-200G 8-Port Ethernet Switch
• Rack Mounting Kit

Application/Usage:

• Surveillance
• Business
• Enterprise

Warranty
Limited Warranty: Lifetime
