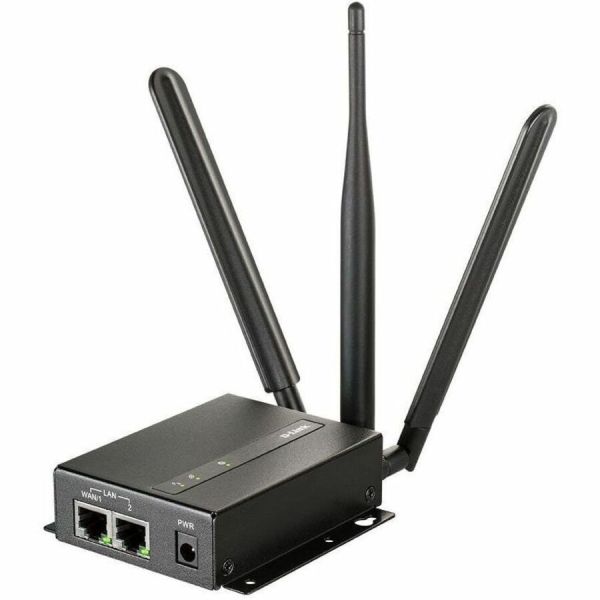

D-Link DWM-313 Wireless Router

Marketing Information

The D-Link DWM-313 4G LTE M2M Router is an easy-to-deploy, high-performance Virtual Private Network (VPN) router with mobile connectivity to allow easy access to mobile broadband networks. Create a powerful private network for your home or small office with easy setup tools, advanced configuration options, and built-in security features.

Fast Mobile Internet

The DWM-313 4G LTE M2M Router lets you establish a 3G/4G mobile connection with fast downlink speeds of up to 150 Mbps and uplink speeds of up to 50 Mbps, giving you the speed you need for fast, responsive Internet access. The auto-failover feature automatically switches between mobile broadband and fixed-line broadband to ensure you stay connected to the Internet i...n case one connection fails.

Reliable Virtual Private Networks

The DWM-313 4G LTE M2M Router lets you create a secure high-speed Virtual Private Network (VPN) for remote or local access. It supports IPSec, OpenVPN, PPTP, L2TP and GRE protocols, and also handles pass-through traffic. Advanced VPN configuration options can be set using the comprehensive setup wizard, and include multiple encryption options, key management, negotiation modes, and VPN authentication support. With the DWM-313, you'll have all the tools you need to create the ideal VPN solution for your network.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DWM313
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Model: DWM-313
Product Name: DWM-313 Wireless Router
Product Type: Wireless Router
Technical Information
Wi-Fi Generation: Wi-Fi 4
Wireless Specifications
Broadband Transmission Technology:

• Ethernet
• Cellular

Wireless LAN Standard: IEEE 802.11b/g/n
Cellular Generation: 4G
Cellular Network Supported:

• GSM 900
• GSM 1800
• UMTS 900
• UMTS 2100
• UMTS 850
• GSM 800
• GSM 2100
• UMTS 1900
• UMTS 1700

Cellular Data Connectivity Technology:

• GPRS
• EDGE
• WCDMA
• LTE
• DC-HSDPA
• HSUPA
• UMTS
• HSPA

Total Number of Antennas: 3
Number of External Antennas: 3
Total Wireless Transmission Speed: 18.75 MB/s
Encryption Standard:

• AES (128-bit)
• 64-bit WEP
• 128-bit WEP

Firewall Type:

• NAT
• SPI

Interfaces/Ports
Total Number of Network Ports: 2
Number of Network (RJ-45) Ports: 1
USB: Yes
Number of Broadband (RJ-45) Ports: 1
Network & Communication
Ethernet Technology: Fast Ethernet
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Micro
Storage
Storage Media: MicroSD
Physical Characteristics
Form Factor: Wall Mountable
Height: 23.6 mm
Width: 70 mm
Depth: 93 mm
Weight (Approximate): 210 g
Miscellaneous
Certifications & Standards:

• IEEE 802.3i
• IEEE 802.3u
