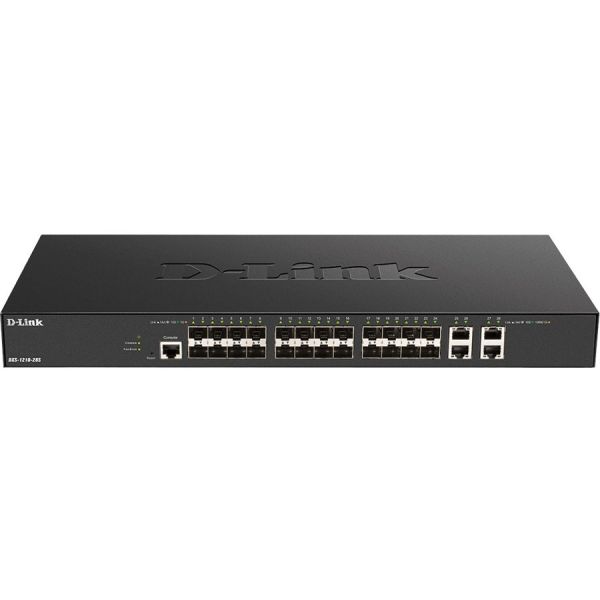

D-Link DXS-1210-28S Ethernet Switch

Marketing Information

10-Gigabit Smart Managed switches with optional auto-detection to eliminate surveillance and VoIP latency, and optional SFP+ or SFP28 ports for 10G/25G expandable network, designed for scalability

• Range of copper and fiber port combinations for deployment flexibility
• Effortlessly eliminate surveillance and VoIP latency (select models only)
• Layer 2 management and security, with Layer 3 Lite features
• Up to 32K MAC address table size to connect more clients
• Cable Diagnostics & Loopback Detection streamlines network operation

Highlights

The D-Link DXS-1210 Series conveniently offers a range of 10-Gigabit copper and fiber port combinations to cost-effe...ctively alleviate network congestion. Select models are equipped with SFP+ or SFP28 ports for 10G/25G expandable network designed for scalability and can auto-detect surveillance and voice data to ensure uninterrupted video footage and jitter-free VoIP calls.

10-Gigabit Ports

10G connections for low latency and high bandwidth environments

10G/ 25G SFP28 Ports

10G/25G expandable network designed for scalability (DXS-1210-28T only)

User Friendly Web GUI

Multi-language Web GUI makes management easy for global deployments

Energy Saving Technology

By incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality.

Layer 2 Features

Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP)

Layer 3 Lite Features

Such as IP interfaces, ARP, IPv6 Neighbor Discovery (ND), Default Routing and Static Routing

Quality of Service

Automatically detects surveillance and VoIP data to ensure uninterrupted transmission (select models only)

Network Security

D-Link's innovative Safeguard Engine™ protects the network against traffic flooding caused by virus and worm infections

Alleviate Network Congestion

Add 10-Gigabit Ethernet connectivity with these affordable high-performance switches. Designed for deployment in small to medium-sized business (SMB) core networks and powerful enough for enterprise aggregation applications.

Simple & Cost-Effective Migration Up to 100G

The DXS-1210-28T model features 24 10GBase-T and four SFP28 fiber ports (10G/25G) to provide great scalability, highly efficient network and expandable capacity

Convenient Layer 2 & Layer 3 Lite Configurability

The DXS-1210 Series can be deployed as a Layer 2 aggregation switch with features such as port mirroring, STP, and LACP. When implemented as a Layer 3 Lite core switch, IP interfaces, ARP, IPv6 ND, Default Routing, and Static Routing can be applied for efficient routing applications.

An Added Line of Defense Against Attacks

The DXS-1210 Series defends your network with D-Link's innovative Safeguard Engine™ to neutralize threats such as malicious network flooding attacks, ARP spoofing, and bogus DHCP IP addressing. The DXS-1210 Series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DXS-1210-28S
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Series: DXS-1210
Product Model: DXS-1210-28S
Product Name: DXS-1210-28S Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 4
Modular: Yes
Port/Expansion Slot Details:

• 4 x 10 Gigabit Ethernet Network
• 24 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: 10 Gigabit Ethernet
Network Technology:

• 10GBase-T
• 10GBase-X

I/O Expansions
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 24
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Consumption: 85.70 W
Physical Characteristics
Form Factor: Desktop
Height: 44 mm
Width: 441 mm
Weight (Approximate): 3.30 kg
