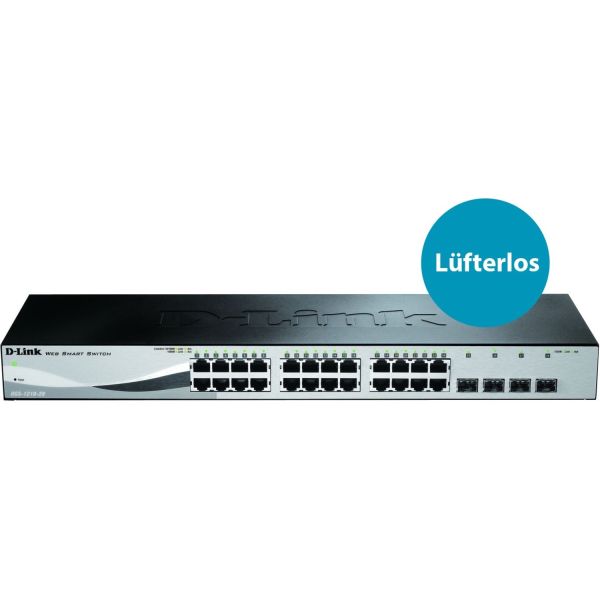

D-Link WebSmart DGS-1210-28 Ethernet Switch

Marketing Information

The D-Link DGS-1210 Series is the latest generation of Web Smart switches to feature D-Link Green technology. Equipped with 10, 16, 24, or 48 10/100/1000Mbps ports and two or four combo 10/100/1000BASE-T/SFP ports, the series integrates advanced management and security functions that provide performance and scalability. Additionally, the 10/100/1000Mbps ports on the DGS-1210-10P are PoE enabled, offering ease-of-use and green features such as PoE scheduling, which allows for the power to be shut off at a pre-determined time. Management options for the DGS-1210 Series switches include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines. The series also supports ACL filtering and the D-Link Safeguard Engine. The DGS-1210 Se...ries uses Auto Voice VLAN, ensuring higher priority for voice traffic. The DGS-1210-10P comes with a fanless design in a compact 13-inch desktop enclosure; the DGS-1210-16 and DGS-1210-24 come in a fanless design with a 19-inch metal case. The DGS-1210-48 is equipped with two smart fans; these fans are set to low speed by default and will automatically switch to high speed once the temperature threshold has been reached. A fanless design allows for quieter operation and guarantees an extended lifetime, while smart fans help to considerably save power.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DGS-1210-28
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Line: WebSmart
Product Series: DGS-1210
Product Model: DGS-1210-28
Product Name: WebSmart DGS-1210-28 Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Token Ring Port: No
LRE Port: No
Bypass: No
Modular: No
Number of Network (RJ-45) Ports: 24
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet Network
• 4 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Management:

• Web-Based Management
• Command Line Interface
• SNMP
• RMON
• Syslog
• Telnet
• VLAN
• QoS
• MIB

Memory
Standard Memory: 128 MB
Memory Technology: DDR2 SDRAM
Flash Memory: 16 MB
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Desktop
• Rack-mountable

Miscellaneous
Certifications & Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.1w
• IEEE 802.1D
• IEEE 802.3ad
• IEEE 802.1p
• FCC class A
• CE Class A
• VCCI Class A
• IC Class A
• cUL
• LVD
• CE
