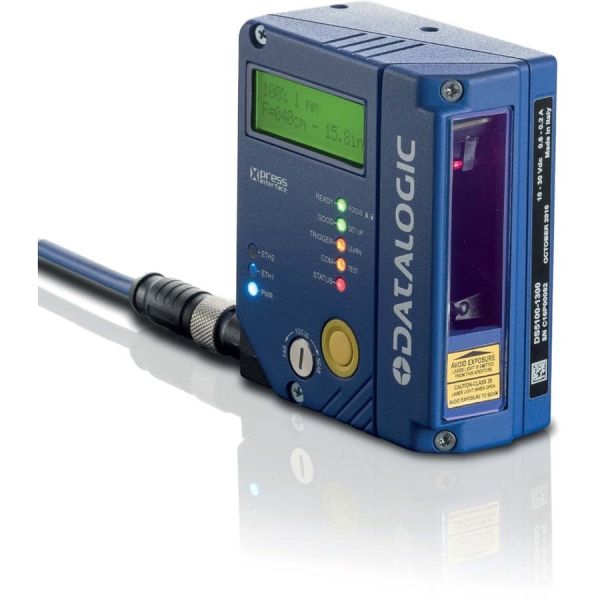

Datalogic S5100-1305 Barcode Scanner
£2,219.78
Limited Stock: Only 0 available
Only 1 left
Datalogic S5100-1305 Barcode Scanner
Datalogic S5100-1305 Barcode Scanner is available to buy in increments of 1
Categories: Barcode Scanners, Default Category
| Application/Usage | Food & Beverage/Manufacturing/Warehouse/Industrial/Picking/Sorting/Outdoor |
|---|---|
| Host Interface | Ethernet/Serial |
| Product Type | Barcode Scanner |
| Connectivity Technology | Cable |
| Form Factor | Desktop |
| Brand Name | Datalogic |
| Scanning Distance | 1 m |
| Scanner Range | Medium Range |
| Scan Pattern | Linear |
| Product Family | DS5100 |
| Ingress Protection (IP) Rating | IP65 |
| Cable Type Included | Serial |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
Datalogic announces the availability of the DS5100, the new flexible, powerful and compact laser scanner. The DS5100 is a cost effective solution satisfying the main identification needs of Automotive, Food & Beverage, Pharmaceutical and other manufacturing plants.
The DS5100 offers a complete and flexible portfolio including Medium and Long Range models, Linear and Oscillating Mirror models. The unit boasts the DST™ (Digital Signal Technology) for stable and constant performance at any operative condition, a best in class ACR™ 4 reconstruction algorithm, and optimized reading recipes for flexible and outstanding reading performance on low quality and low contrast bar codes, damaged labels as well as at high skew an...gles. Superior reading performance together with a user selectable focus make the DS5100 the ideal solution to cover different applications along the manufacturing chain: Shop Floor, End of Line, Automated Warehouse, Intralogistics, Pallet Reading and more.
Top Industrial grade IP65 protection class, subzero™ models down to -35°C and total ambient light immunity make the DS5100 ideal for harsh industrial environments, outdoor and frozen production facilities. For easy installation and flexible form factor the DS5100 is equipped with rotating connector block. For easy setup and maintenance the DS5100 has the intuitive X-PRESS™ interface and the Multilanguage Genius™ software tool. The embedded Multilanguage display improves scanner monitoring and diagnostics.
The DS5100 offers complete connectivity and networking capabilities. On-board Ethernet ports (one and two ports models) and switch provide embedded interface to main Fieldbus EtherNet/IP and PROFINET-IO without the need of external devices for a cost effective solution and short installation time. The ID-NET™ interface is ideal for high speed networks and multi side reading. Ethernet Bus Connection EBC™ interface delivers real time multi-head synchronization and events via bus for short and easy installation (no signal cables), PACKTRACK™ tracking technology mode for increased reading throughput and accuracy. Extended interoperability with Datalogic mid-range (DS2100N/DS2400N through ID-NET interface) and long range (DS8110/DX8210 through EBC) laser scanner families allows the DS5100 to be the perfect solution for integrated systems.
With its outstanding performances, the DS5100 delivers a smart, flexible and high performance/price ratio offer in the Datalogic scanner portfolio.
Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: 931061342
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Series: DS5100
Product Model: DS5100-1305
Product Name: S5100-1305 Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Barcode Symbology Supported:
Scan Rate: 800 scan/s
Scan Pattern: Linear
Scanner Range: Medium Range
Scanning Distance: 1 m
Cable Type Included: Serial
Interfaces/Ports
Host Interface:
Power Description
Maximum Operating Power Consumption: 7.50 W
Physical Characteristics
Form Factor: Desktop
Height: 42 mm
Width: 101 mm
Depth: 104.2 mm
Weight (Approximate): 520 g
Miscellaneous
Ingress Protection (IP) Rating: IP65
Application/Usage:
Datalogic announces the availability of the DS5100, the new flexible, powerful and compact laser scanner. The DS5100 is a cost effective solution satisfying the main identification needs of Automotive, Food & Beverage, Pharmaceutical and other manufacturing plants.
The DS5100 offers a complete and flexible portfolio including Medium and Long Range models, Linear and Oscillating Mirror models. The unit boasts the DST™ (Digital Signal Technology) for stable and constant performance at any operative condition, a best in class ACR™ 4 reconstruction algorithm, and optimized reading recipes for flexible and outstanding reading performance on low quality and low contrast bar codes, damaged labels as well as at high skew an...gles. Superior reading performance together with a user selectable focus make the DS5100 the ideal solution to cover different applications along the manufacturing chain: Shop Floor, End of Line, Automated Warehouse, Intralogistics, Pallet Reading and more.
Top Industrial grade IP65 protection class, subzero™ models down to -35°C and total ambient light immunity make the DS5100 ideal for harsh industrial environments, outdoor and frozen production facilities. For easy installation and flexible form factor the DS5100 is equipped with rotating connector block. For easy setup and maintenance the DS5100 has the intuitive X-PRESS™ interface and the Multilanguage Genius™ software tool. The embedded Multilanguage display improves scanner monitoring and diagnostics.
The DS5100 offers complete connectivity and networking capabilities. On-board Ethernet ports (one and two ports models) and switch provide embedded interface to main Fieldbus EtherNet/IP and PROFINET-IO without the need of external devices for a cost effective solution and short installation time. The ID-NET™ interface is ideal for high speed networks and multi side reading. Ethernet Bus Connection EBC™ interface delivers real time multi-head synchronization and events via bus for short and easy installation (no signal cables), PACKTRACK™ tracking technology mode for increased reading throughput and accuracy. Extended interoperability with Datalogic mid-range (DS2100N/DS2400N through ID-NET interface) and long range (DS8110/DX8210 through EBC) laser scanner families allows the DS5100 to be the perfect solution for integrated systems.
With its outstanding performances, the DS5100 delivers a smart, flexible and high performance/price ratio offer in the Datalogic scanner portfolio.
Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: 931061342
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Series: DS5100
Product Model: DS5100-1305
Product Name: S5100-1305 Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Barcode Symbology Supported:
- Code 2/5
- Code39
- Code93
- Code128
- EAN/UPC
- EAN128
- Codabar
- Pharmacode
- Plessey
- ISBT128
Scan Rate: 800 scan/s
Scan Pattern: Linear
Scanner Range: Medium Range
Scanning Distance: 1 m
Cable Type Included: Serial
Interfaces/Ports
Host Interface:
- Ethernet
- Serial
Power Description
Maximum Operating Power Consumption: 7.50 W
Physical Characteristics
Form Factor: Desktop
Height: 42 mm
Width: 101 mm
Depth: 104.2 mm
Weight (Approximate): 520 g
Miscellaneous
Ingress Protection (IP) Rating: IP65
Application/Usage:
- Food & Beverage
- Manufacturing
- Warehouse
- Industrial
- Picking
- Sorting
- Outdoor
