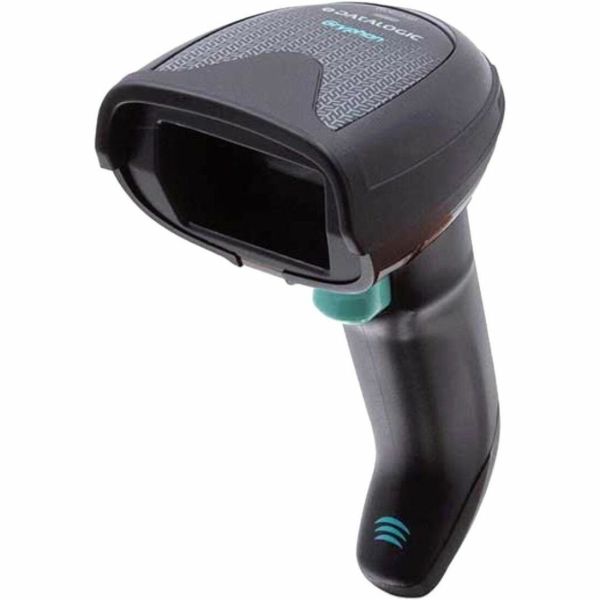

Datalogic Gryphon GBT4500 Barcode Scanner

Marketing Information

IMAGING TECHNOLOGY

The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

SIMPLE TO USE AND DEPLOY

The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked, and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Wat...ermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and first pass decoding of fast moving codes.

READY TO BE REGULARLY CLEANED AND DISINFECTED

Most working environments now have requirements that scanners need to be regularly cleaned and disinfected. The Gryphon 4500 series utilizes Disinfectant-Ready enclosures, designed to withstand regular daily cleaning with harsh disinfectant solutions commonly used in a healthcare environment.

WIRELESS COMMUNICATIONS AND WIRELESS CHARGING

Featuring Bluetooth® wireless technology (GBT models) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM models), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution. One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the wireless charging technology means 24/7 activities with no stops for maintenance or repair and toplevel operating productivity and performance.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: GBT4500BKDGMWLC
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Gryphon
Product Model: GBT4500
Product Name: Gryphon GBT4500 Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D / Linear Codes:

• Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes:

• Aztec Code
• China Han Xin Code
• Data Matrix
• MaxiCode
• Micro QR Code
• QR Code
• Dot Code

Postal Codes:

• Australian Post
• British Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC)

Stacked Codes:

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MacroPDF
• MicroPDF417
• PDF417
• UPC A/E Composites

Digital Watermarking:

• Digimarc Barcodes

Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 889 mm/s
Image Formats:

• BMP
• JPEG
• TIFF

Maximum Ambient Light: 100000 lux
Drop Specification:

Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

Minimum Print Contrast: 15%
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Power Description
Input Current: 330 mA
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3250 mAh
Environmental Conditions
Operating Temperature: 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 95%
Physical Characteristics
Form Factor: Handheld
Product Color: Black
Miscellaneous
Ingress Protection (IP) Rating: IP52
Application/Usage:

• Light/Clean Manufacturing
• Retail
• Healthcare
• Transportation
• Commercial Service
