Datalogic GRYPHON 4500 GFS4520 Barcode Scanner Kit

Marketing Information

EASY INTEGRATION

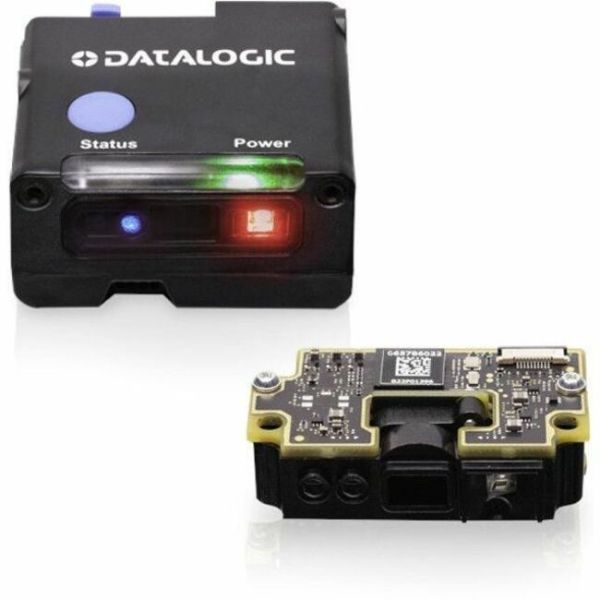

Designed for easy integration and simple installation, the Gryphon 4500 Fixed Series scan modules provide ready-to-use versatile solutions for kiosks and machine manufacturers. The GFS4500 module can be easily integrated with little effort in different enclosures from multiple sides with its small regular size and various fixing points. The "naked" version GFE4500 is ideal for tailor-made fully integrated solution.

MAXIMUM RELIABILITY

The Gryphon 4500 Fixed Series scan modules are made to last with a durable design for maximum uptime. You can rely on them for both indoor and outdoor applications with the IP54 sealing, the UV protected scratch resistant output window, the wide range operatin...g temperature and the great resistance to accidental drops, shock, and vibrations. RS-232 and USB/RS-232 models have an integrated cable while the USB models are equipped with a locking clip to prevent the USB cable from coming loose or disconnecting.

The 5-year factory warranty proves the Gryphon 4500 Fixed Series has been designed to last.

TOP PERFORMANCE

The Gryphon 4500 Fixed Series 2D scan modules features the most advanced Megapixel sensor technology with distinctive red or white illumination technology with adjustable brightness for outstanding reading performance. The wide angle optics allows snappy scanning of any 1D and 2D barcodes and it starts reading at almost contact while offering improved motion tolerance and first pass decoding of fast-moving codes. The speedy reading of tickets, boarding passes, loyalty cards, and coupons from mobile phone displays is granted by the ultimate decoding algorithms you can count on.

BEST FEEDBACK

 Datalogic's 'Green Spot' technology coupled with a high visibility topfront LED and integrated loud beeper with adjustable intensity provide superior good-read feedback.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: GFS4520BKK1RED
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Gryphon
Product Series: 4500
Product Model: GFS4520
Product Name: GRYPHON 4500 GFS4520 Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

• Aztec Code
• China Han Xin Code
• Data Matrix
• MaxiCode
• Micro QR Code
• QR Code
• Dot Code
• Dot Matrix

Postal Codes:

• Australian Post
• British Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC)

Stacked Codes:

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MacroPDF
• MicroPDF417
• PDF417
• UPC A/E Composites

Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Depth of Field:

• 4 to 30.0 cm / 0.16 to 11.8 in @ 5 mil Code 39
• 1.7 to 53.5 cm / 0.6 to 21.0 in @ 10 mil Code 39
• 3.5 to 23.5 cm / 1.3 to 9.6 in @ 10 mil Data Matrix
• 3.0 to 35.0 cm / 1.2 to 13.7 in @ 15 mil Data Matrix
• 4.0 to 82.0 cm / 1.6 to 32.3 in @ 13 mil EAN/UPC
• 3.5 to 22.0 cm / 1.4 to 8.7 in @ 10 mil QR Code

Scan Pattern:

• Area
• Omni-directional

Scanner Range: Standard Range
Scanning Distance: 820.42 mm
Features:

• Beep
• Notification LED
• Grayscale Image Capture

Cable Type Included: USB
Field of View (Horizontal): 51°
Field of View (Vertical): 32°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 180°
Motion Tolerance: 1778 mm/s
Image Formats:

• BMP
• JPEG
• TIFF

Maximum Ambient Light: 120000 lux
Drop Specification:

• Withstands repeated drops from 1.5 m / 5 ft onto a concrete surface

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 0.25 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (DataMatrix): 0.38 mm
Minimum Element Resolution (PDF417): 0.25 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Interfaces/Ports
Host Interface: USB
Power Description
Standby Current: 115 mA
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Physical Characteristics
Form Factor: Fixed Mount
Color Family: Black
Product Color: Black
Durability:

• Water Resistant
• Dust Resistant

Weight (Approximate): 52 g
Miscellaneous
Package Contents:

• 1 x GRYPHON 4500 GFS4520 Barcode Scanner
• 1 x USB Cable

Ingress Protection (IP) Rating: IP54
Application/Usage:

• Self Service
• Ticketing
• Retail
• Self-checkout
• Healthcare

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
