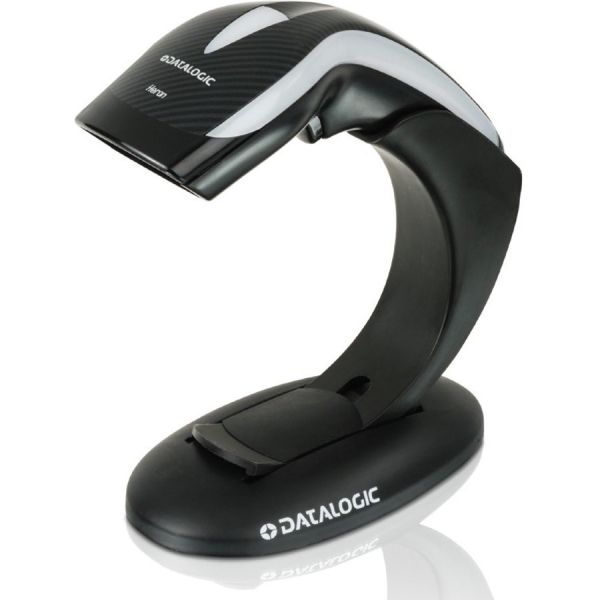

Datalogic Heron HD3130 Handheld Barcode Scanner Kit

Marketing Information

The Heron™ HD3100 linear imager brings unmatched elegance along with the latest advanced technology to the modern point-of-sale. The stylish silhouette of the new imager enriched with multiple color changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer's brand experience at the point-of-sale.

The Heron HD3100 imager differs from the usual color scheme of handheld devices by providing a stunning 'black' or 'white' color option, emphasizing the curving lines of the new enclosure. Additionally, the Heron imager features in-mold decorated top covers with a choice of 'Carbon Fiber' or 'Silver' design. This imager also offers opportunities to incorporate a company brand identi...ty by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer's brand.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: HD3130-BKK1B
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Heron
Product Series: HD3100
Product Model: HD3130
Product Name: Heron HD3130 Handheld Barcode Scanner Kit
Packaged Quantity: 3
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported: 1D / Linear Codes:

• Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

Postal Codes:

• China Post

Stacked Codes:

• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional

Image Sensor Type: CCD
Scan Rate: 270 scan/s
Scan Pattern: Single Line
Scanning Distance: 600 mm
Cable Type Included: USB
Stand Included: Yes
Maximum Ambient Light: 100000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 152.4 mm
Width: 68.6 mm
Depth: 152.4 mm
Weight (Approximate): 150 g
Miscellaneous
Package Contents:

• Heron HD3130 Handheld Barcode Scanner
• Stand
• USB Cable

Additional Information:

USB Cable separate

Ingress Protection (IP) Rating: IP40
Application/Usage:

• Industrial
• Retail

Country of Origin: Vietnam
Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
