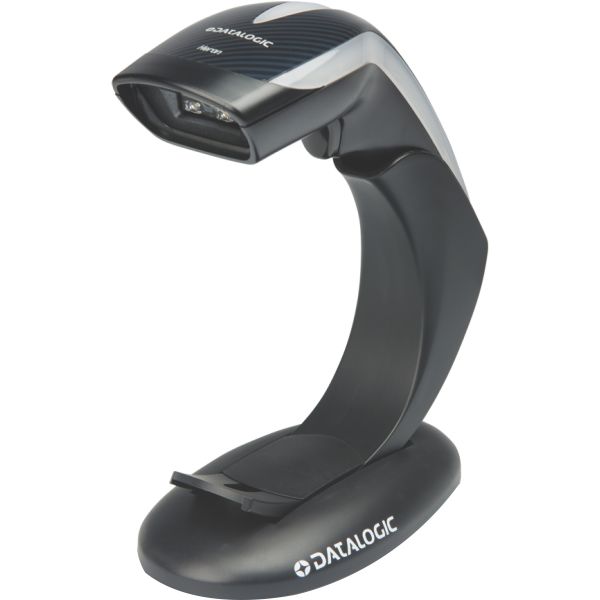

Datalogic Heron HD3430 Handheld Barcode Scanner Kit

Marketing Information

Datalogic is pleased to announce the release of the Heron™ HD3430 2D area imager with unmatched elegance and advanced technology for the modern point-of-sale.

The Heron HD3430 2D imager provides a stunning black 'carbon-fiber' look or a white 'silver' color option, emphasizing the curving lines of the Heron's enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer's brand.

FEATURES

• Outstanding reading performance on 1D, 2D, postal codes, stacked, composite codes and Image captur...e
• Multiple changing color LEDs on sides and top
• Top of the market illumination and aiming system
• Polyphonic speaker for a wide variety of choices regarding audio feedback
• Datalogic's patented 'Green Spot' technology for good-read feedback
• Automatic switching between handheld and hands-free operations

APPLICATIONS

• Non-food specialty stores such as Fashion Clothes, Cosmetics, Jewelry, Perfume, etc.
• Duty-free and Airport stores
• Commercial Services: Banks, Insurance Companies and Utilities

The Heron HD3430 2D area imager completes the Heron family offering by adding 2D reading capability to the existing Heron readers and providing customers with an unmatched choice regarding price and bar code reading needs.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: HD3430-BKK1S
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Heron
Product Model: HD3430
Product Name: Heron HD3430 Handheld Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D / LINEAR CODES:

• Autodiscriminates all standard 1D codes including GS1 DataBar ™ linear codes

2D CODES:

• Aztec Code
• Aztec Mesas
• Data Matrix
• MaxiCode
• QR Code
• Micro QR Code
• China Han Xin Code

POSTAL CODES:

• Australian Post
• British Post
• Canadian Post
• China Post
• Japanese Post
• KIX Post
• Korea Post
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC)

STACKED CODES:

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MacroPDF
• MicroPDF417
• PDF417
• UPC A/E Composites

Image Sensor Type: Imager
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Product Color: Black
Weight (Approximate): 150 g
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
