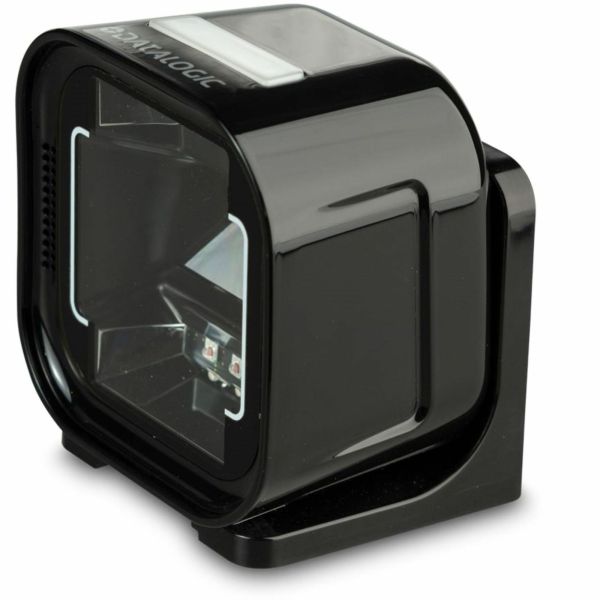

Datalogic Magellan 1500i Barcode Scanner

Marketing Information

HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND

The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc Barcode decoding, the Magellan 1500i is the most capable scanner in its class.

A WIDE VARIETY OF USES

The available black and white enclosures complement a var...iety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added features included in every Magellan scanner.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: MG1503302000200
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Magellan
Product Model: 1500i
Product Name: Magellan 1500i Barcode Scanner
Package Type: OEM
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 2D
• 1D

Barcode Symbology Supported:

1D:

• Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

• Aztec Code,
• Data Matrix
• MaxiCode,
• QR Code

Light Source: LED
Scan Pattern: Omni-directional
Scanning Distance: 299.72 mm
Features:

• Beep
• Notification LED
• Checkpoint EAS

Cable Type Included: USB
Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Maximum Ambient Light: 86100 lux
Drop Specification:

Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface

Minimum Print Contrast: 25%
Image Sensor Resolution: 1280 x 800
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Height: 150 mm
Width: 60 mm
Depth: 75 mm
Weight (Approximate): 170 g
Miscellaneous
Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Commercial Service
• Healthcare
• Industrial
