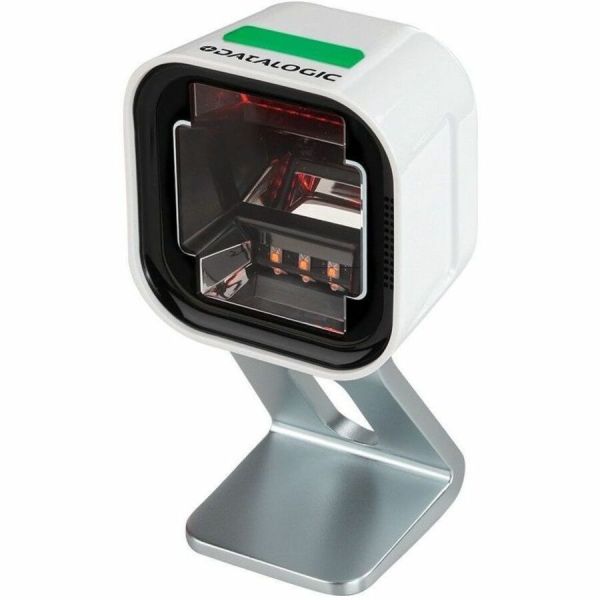

Datalogic MAGELLAN 1500i Barcode Scanner Kit

Marketing Information

HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND

The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc® Barcode decoding, the Magellan 1500i is the most capable scanner in its class.

A WIDE VARIETY OF USES

The available black and wh...ite enclosures complement a variety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added features included in every Magellan scanner.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: MG1502-10241-0200
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Magellan
Product Model: 1500i
Product Name: MAGELLAN 1500i Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

• Aztec Code
• Data Matrix
• MaxiCode
• QR Code

Postal Codes:

• Australian Post
• British Post
• Canadian Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Portuguese Post
• Postnet
• Royal Mail Code (RM4SCC)
• Swedish Post

Stacked Codes:

• GS1 DataBar Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• Micro PDF417
• PDF417

Digital Watermarks:

• Optional support for Digimarc® Barcodes/GS1 DW Code

Light Source: LED
Image Sensor Type: Imager
Scan Pattern:

• Area
• Omni-directional

Scanner Range: Standard Range
Scanning Distance: 299.72 mm
Features:

• Beep
• Notification LED
• Ergonomic Design
• Checkpoint EAS

Cable Type Included: USB
Stand Included: Yes
Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Image Formats:

• JPEG
• BMP

Maximum Ambient Light: 86100 lux
Drop Specification:

• Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface

Minimum Print Contrast: 25%
Minimum Element Resolution (DataMatrix): 0.33 mm
Maximum Element Resolution (DataMatrix): 0.61 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Air Electrostatic Discharge (+/-): 25kV
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Hands-free
Color Family: White
Product Color: White
Durability:

• Water Resistant
• Dust Resistant

Weight (Approximate): 240 g
Miscellaneous
Package Contents:

• MAGELLAN 1500i Barcode Scanner
• USB Type A 4.5m/15ft Cable
• Riser Stand with Magnetic Base

Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Commercial Service
• Healthcare
• Laboratory
• Pharmacy

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 3 Year
