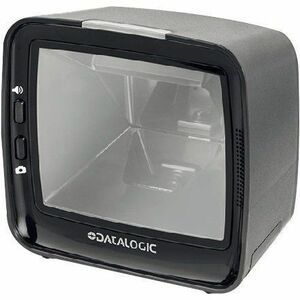

Datalogic Magellan 3410VSi Barcode Scanner

Marketing Information

ON-COUNTER HIGH PERFORMANCE BAR CODE READER

The Magellan 3410VSi series of scanners continue the Datalogic tradition of high performance imaging for the point of sale. With the same cables, mounts and exterior plastics as the Magellan 3450VSi, the 3410VSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3410VSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.

With a large field of view and the capabilities of imaging, the 3410VSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and pre...sentation scanning techniques, ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.

ENHANCING THE CUSTOMER EXPERIENCE

The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: M341001020007604
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Magellan
Product Model: 3410VSi
Product Name: Magellan 3410VSi Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D :

• Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D :

• Aztec Code
• Data Matrix
• QR Code

Stacked Codes:

• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• Micro PDF417
• PDF417

Digital Watermarks:

• Optional support for Digimarc Barcodes / GS1 DW Code

Light Source: LED
Image Sensor Type: Imager
Scanning Distance: 203.20 mm
Features:

• Beep
• Notification LED
• Ergonomic Design
• Sensormatic EAS
• Checkpoint EAS
• Diagnostic Reporting

Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Image Formats:

• JPEG
• BMP

Maximum Ambient Light: 86100 lux
Minimum Print Contrast: 25%
Minimum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (DataMatrix): 0.51 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Air Electrostatic Discharge (+/-): 25kV
Interfaces/Ports
Host Interface: USB
Power Description
Maximum Operating Power Consumption: 3.30 W
Environmental Conditions
Operating Temperature: 10°C to 40°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Desktop
Durability:

• Water Resistant
• Dust Resistant

Weight (Approximate): 600 g
Miscellaneous
Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Pharmacy

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 3 Year
