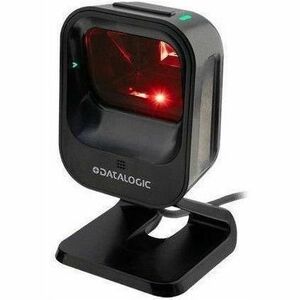

Datalogic MAGELLAN 900i Barcode Scanner Kit

Marketing Information

HIGH PERFORMANCE SCANNING FOR YOUR BUSINESS

The Magellan 900i omnidirectional presentation scanner is a versatile addition to any point-of-sale or service counter. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D barcodes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. Equally at home in sweep or presentation scanning applications, the Magellan 900i makes it easy to read any bar code in any situation.

A WIDE VARIETY OF USES

The simple, clean aesthetic of the Magellan 900i makes it blend into any store format and with any point-of-sale system. It is equally at home in a pharmacy, convenience store, movie theater o...r a boutique. The compact footprint maximizes stability and space efficiency. The intelligent host cable routing common to all Magellan scanners ensures that the 900i is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. The optional kiosk/OEM mount makes for a seamless integration into a small point-of-sale, access control kiosk, or customer ordering station.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added features included in every Magellan scanner.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: MG0902-11000-0200
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Magellan
Product Model: 900i
Product Name: MAGELLAN 900i Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

• Aztec Code
• Data Matrix
• MaxiCode
• QR Code

Postal Codes:

• Australian Post
• British Post
• Canadian Post
• China Post; IMB
• Japanese Post
• KIX Post
• Planet Code
• Portuguese Post
• Postnet;
• Royal Mail Code (RM4SCC)
• Swedish Post

Stacked Codes:

• GS1 DataBar Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• Micro PDF417
• PDF417

Light Source: LED
Image Sensor Type: Imager
Scan Pattern:

• Area
• Omni-directional

Scanning Distance: 279.40 mm
Features:

• Beep
• Notification LED
• Ergonomic Design
• Checkpoint EAS

Cable Type Included: USB
Reading Angle (Skew): 70°
Reading Angle (Pitch): 70°
Reading Angle (Roll): 360°
Image Formats:

• JPEG
• BMP

Maximum Ambient Light: 86100 lux
Drop Specification:

• Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface

Minimum Print Contrast: 25%
Minimum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (DataMatrix): 0.38 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Air Electrostatic Discharge (+/-): 25kV
Interfaces/Ports
Host Interface:

• USB
• Serial

Environmental Conditions
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Desktop
Color Family: Black
Product Color: Black
Durability:

• Water Resistant
• Dust Resistant

Miscellaneous
Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Commercial Service
• Healthcare
• Laboratory
• Pharmacy
• Convenience Store
