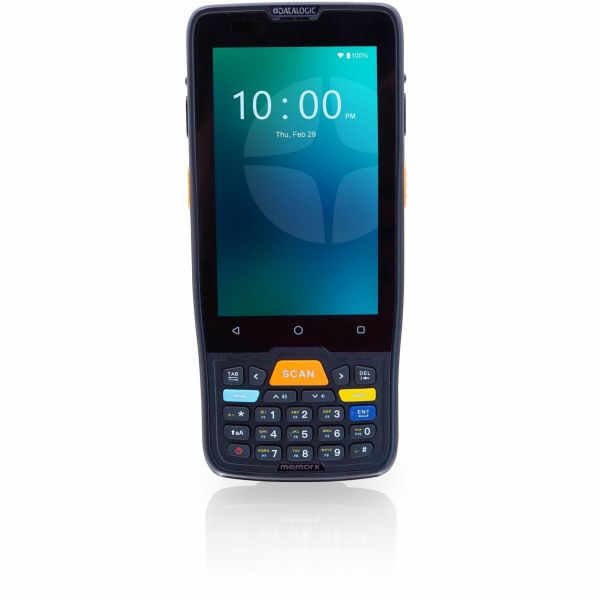

Datalogic Memor K Handheld Terminal

Marketing Information

MEMOR™ K - YOUR DAILY COMPANION FOR ALL DATA CAPTURE ACTIVITIES

Datalogic's Memor K mobile computer is the perfect pocketable business companion for any data capture application, from assisted sales to the shop floor, or back-end receiving to the warehouse. It might be small in size, but it's very large in technology! The Memor K mobile computer includes a powerful 2 GHz octa-core processor with 3 GB of memory featuring Android™ 9. The backlit keyboard ensures very fast data input, while the 4 inch display provides the user with plenty of space for their applications.

COMMUNICATION AND DESIGN

The powerful Wi-Fi connection which includes AC standard allows users to access very fast download and u...pload connections, while the USB-C ensures exceptional data exchange and charging speeds. The Memor K mobile computers' light weight and thin design, along with 2 comfortably positioned side keys and SoftSpot™ technology for a variety of user-defined functions, make scanning processes both easy and fast. It is also very durable with an IP54 rating and 1.2 m / 4 feet drop spec. The 3,800 mAh battery ensures a very long operational scanning session.

KEYBOARD AND SCAN ENGINE

The soft-touch, backlit keyboard allows users to quickly type in information such as quantity, description or location of any item scanned. The lightning fast 2D imager allows users to easily read any 1D or 2D barcode from any surface, including mobile screens.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: 946000001
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Memor K
Product Name: Memor K Handheld Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 2D
• 1D

Image Sensor Type: Imager
Sensor Type:

• Ambient Lighting
• Accelerometer
• Proximity

Features:

• Green Spot Technology
• Lightweight
• Drop Resistant

Drop Specification:

Withstands 18 drops from 1.2 m / 4 ft to concrete according to IEC62-2-32 Method 1. Device with rubber boot: withstands 18 drops from 1.5 m / 5 ft to concrete according to IEC62-2-32 Method 1 with rubber boot

Illumination Type: LED
Processor & Chipset
Processor Core: Octa-core (8 Core)
Processor Speed: 2 GHz
Memory
Standard Memory: 3 GB
Flash Memory: 32 GB
Memory Card Supported:

• microSD
• TransFlash
• microSDHC

Display & Graphics
Screen Size: 10.2 cm (4")
Screen Mode: WVGA
Screen Resolution: 800 x 480
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Keyboard Type: Numeric
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 4.2
Near Field Communication (NFC): Yes
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Rear Camera: Yes
Rear Camera Resolution: 8 Megapixel
Software
Operating System: Android 9.0 Pie
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 3800 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 70°C
Physical Characteristics
Product Color: Black
Form Factor: Phone-size
Rugged: Yes
Height: 160 mm
Width: 71 mm
Depth: 17 mm
Weight (With Battery): 268 g
Miscellaneous
Application/Usage:

• Warehouse
• Retail
• Inventory Management
• Order Picking
• Manufacturing
• Healthcare

Ingress Protection (IP) Rating: IP54
