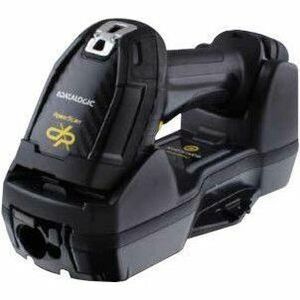

Datalogic Powerscan PM9600-DDPX Barcode Scanner Kit

Marketing Information

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS:

The PowerScan family of bar code readers is the ultimate industrial handheld scanner designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

DPM TECHNOLOGY:

The PowerScan 9600 DPX series addresses Direct Part Marking (DPM) applications where codes are directly marked on the items for traceability with different marking technologies such as laser etching, dot peening, inkjet printing and electrochemical etching. The Datalogic patented 4D learning system automatically sets up the best acquisition... parameters and decoding algorithms, without the need to configure the scanner for every different application.

WIRELESS CHARGING:

The PowerScan 9600 DPX scanner features Datalogic's Wireless Charging system. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MOBILITY ENHANCES PRODUCTIVITY:

The PowerScan 9600 DPX cordless model further enhances the operator efficiency and safety with Bluetooth 5.0 or Datalogic's STAR Cordless System. The base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet, and Industrial protocols.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: PM9600DDPX433RB
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: PowerScan
Product Series: 9600 DPX
Product Model: PM9600-DDPX
Product Name: Powerscan PM9600-DDPX Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D Codes:

• Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

• Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code

Postal Codes:

• Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes:

• EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Omni-directional
Scanning Distance: 226.06 mm
Features:

• Vibration
• 3GL
• Beep
• Notification LED

Display Screen: Yes
Number of Keys: 4
Reading Angle (Skew): 52°
Reading Angle (Pitch): 52°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:

• Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
• Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F

Minimum Print Contrast: 15%
Minimum Element Resolution (DataMatrix): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Direct Part Marking (DPM) Decoding: Yes
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Air Electrostatic Discharge (+/-): 20kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface:

• Multi-interface
• Serial
• USB
• Ethernet

Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3350 mAh
Maximum Battery Recharge Time: 3.20 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Color Family: Black
Product Color: Black
Height: 198 mm
Width: 79 mm
Length: 140 mm
Weight (Approximate): 462.5 g
Miscellaneous
Package Contents:

• 1 x Powerscan PM9600-DDPX Barcode Scanner Kit
• 1 x Removable Battery

Ingress Protection (IP) Rating:

• IP67
• IP65

Application/Usage:

• Manufacturing
• Industrial
• Component Tracking
• Inventory

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 3 Year
