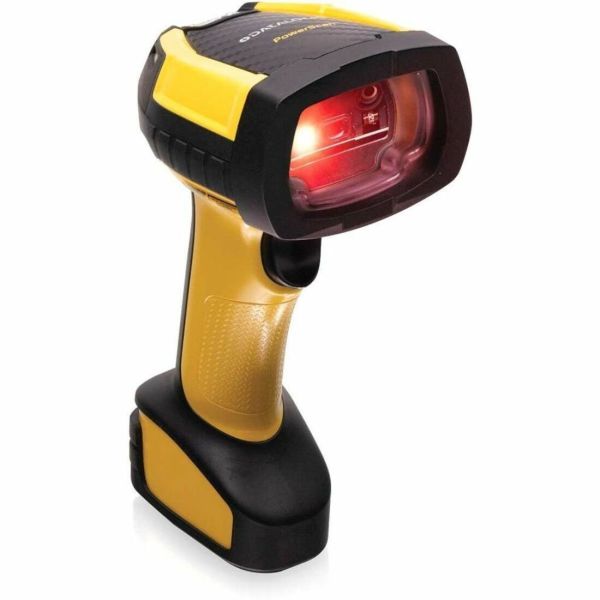

Datalogic PowerScan PM9600 Barcode Scanner Kit

Marketing Information

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan 9600 Auto Range (AR) barcode series is designed to withstand the toughest environmental conditions of a warehouse. The PowerScan 9600 imagers have an ultra rugged center of gravity design with balanced weight to avoid any stress during daily activities. A very visible aiming system allows the precise aiming on the barcode, including codes that are either close or far away.

AUTO RANGE OPTIC TO FULFILL ANY CUSTOMER NEED

The PowerScan 9600 AR series is a top performer even on damaged barcodes or when aiming through shrink wrap, and is equipped with a very fast 1D/2D autofocus scan engine that allows the operator to move easily from a short distance of a... few centimeters of a pick list up to more than 20 m / 65 ft to aim at the highest barcode of a warehouse rack, even in very challenging scanning conditions.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 AR cordless imagers further enhance operator efficiency and safety with a double option of radios: Datalogic's proprietary STAR Cordless System™ or the new Bluetooth® 5.0 variant. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning.

The PowerScan 9600 family features Datalogic's Wireless Charging System. Based on inductive-charging technology, the Wireless Charging System eliminates interaction with battery contacts and pins which often get dirty, bent, or broken over time. This removes a key point of failure for devices used in industrial and retail functions

The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communications such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: PM9600AR433RBK10
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: PowerScan
Product Model: PM9600
Product Name: PowerScan PM9600 Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

• Aztec Code
• China Han Xin Code
• Data Matrix
• MaxiCode
• Micro QR Code
• QR Code
• Dot Code

Postal Codes:

• Australian Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Portuguese Post
• Postnet
• Royal Mail Code (RM4SCC)
• Swedish Post.

Stacked Codes:

• EAN/JAN Composites;
• GS1 DataBar Composites;
• GS1 DataBar Expanded Stacked;
• GS1 DataBar Stacked;
• GS1 DataBar Stacked Omnidirectional;
• MacroPDF
• MicroPDF417
• PDF417
• UPC A/E Composites

Scanner Range: Auto Range
Scanning Distance: 19.99 m
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:

• Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
• Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °

Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (DataMatrix): 2.54 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Network & Communication
Radio Frequency: Yes
Interfaces/Ports
Host Interface: USB
Power Description
Input Current: 480 mA
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3300 mAh
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Dual Colour
Product Color:

• Black
• Yellow

Height: 198.1 mm
Width: 78.7 mm
Length: 139.7 mm
Weight (Approximate): 445 g
Miscellaneous
Package Contents:

• PowerScan PM9600 Barcode Scanner Kit
• battery

Ingress Protection (IP) Rating:

• IP65
• IP67

Application/Usage:

• Industrial
• Warehouse
• Logistics
• Manufacturing
• Inventory
• Picking

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• China Restriction of Hazardous Substances (China RoHS)

Warranty
Limited Warranty: 3 Year
