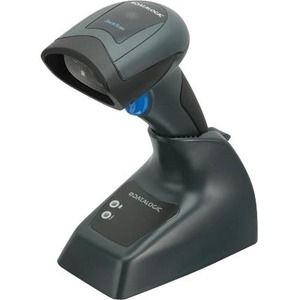

Datalogic QuickScan I QBT2131 Handheld Barcode Scanner Kit

Marketing Information

Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.

The QuickScan QBT2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.

Featuring Bluetooth® Wireless Technology, the QuickScan QBT21...31 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device.

The QBT2131 linear imager can also be connected to any tablet using either iOS or Android™ operating systems via the Bluetooth HID profile.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: QBT2101-BK-BTK+
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: QuickScan I
Product Model: QBT2131
Product Name: QuickScan I QBT2131 Handheld Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability: 1D
Barcode Symbology Supported: 1D / Linear Codes

• Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• UPC A/E Composites

Image Sensor Type: Imager
Scan Rate: 400 scan/s
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface:

• Serial
• Keyboard Wedge
• USB

Physical Characteristics
Form Factor: Handheld
Product Color: Black
Height: 163 mm
Width: 41 mm
Depth: 91 mm
Weight (Approximate): 190 g
Miscellaneous
Additional Information:

USB Cable separate

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)
