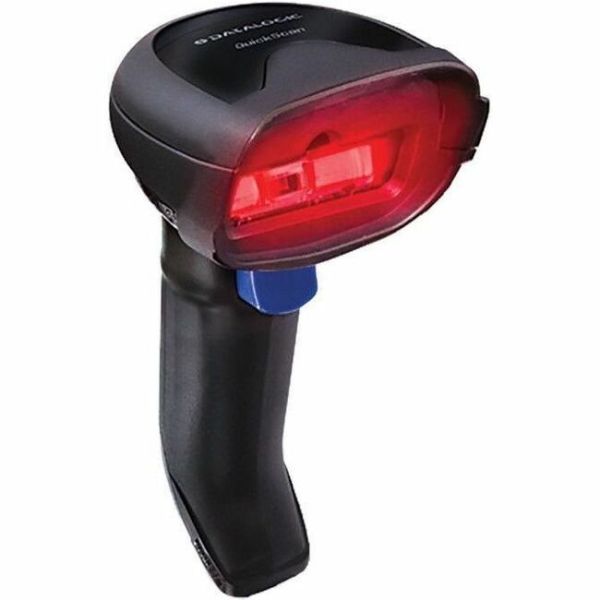

Datalogic QuickScan QD2220 Barcode Scanner Kit

Marketing Information

TAILORED LINEAR IMAGING TECHNOLOGY

Today there is an increased trend towards 2D bar codes, however, linear bar codes are still widespread in Retail POS checkout applications. Long bar codes are also commonly used in a variety of applications including utility bills, document processing and packaging. These long barcodes are a challenge for full area imagers to read due to their narrow field-of-view and shorter depth-of-field.

THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT

The QuickScan QD2200 imager is the 1D entry-level corded imager from Datalogic with a superior scanning performance in its category. It reliably reads any type of 1D barcode from up close to a distance with ease in capturing long bar codes...p>

Unlike other devices on the market, this imager provides full control to the operator, from the linear aiming to the most prompt visual and audible good-read feedback. It seamlessly reads through plexiglass barriers and can scan electronic coupons from smartphone screens at an incredibly affordable price.

COMFORT AND RELIABILITY

Lightweight and easy to handle, the QuickScan QD2200 is very responsive at the pull of the trigger, providing a superior robustness for this class of products where the device is mostly stressed, because of the accurate design and quality of parts.

Offering simple configuration and ease of use, this robust entry-level scanner delivers continuous operation capabilities with no failures.

Finally, the QuickScan QD2200 imager will prove to be the best longterm choice, by cutting down-time, no read/misread management time, and service costs.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: QD2220BKK1
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: QuickScan I
Product Series: 2200
Product Model: QD2220
Product Name: QuickScan QD2220 Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

1D Codes:

• Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Linear
Scanner Range: Standard Range
Scanning Distance: 1.03 m
Features:

• Beep
• Notification LED

Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Motion Tolerance: 1016 mm/s
Maximum Ambient Light: 120000 lux
Drop Specification:

Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.10 mm
Maximum Element Resolution (Code 39): 0.51 mm
Illumination Type: LED
Illumination Color: Red
Air Electrostatic Discharge (+/-): 16kV
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Weight (Approximate): 123 g
Miscellaneous
Package Contents:

• 1 x QuickScan QD2220 Barcode Scanner Kit
• 1 x USB Cable

Ingress Protection (IP) Rating: IP42
Application/Usage:

• Retail
• Industrial
• Commercial Service
• Hospitality
• Government

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
