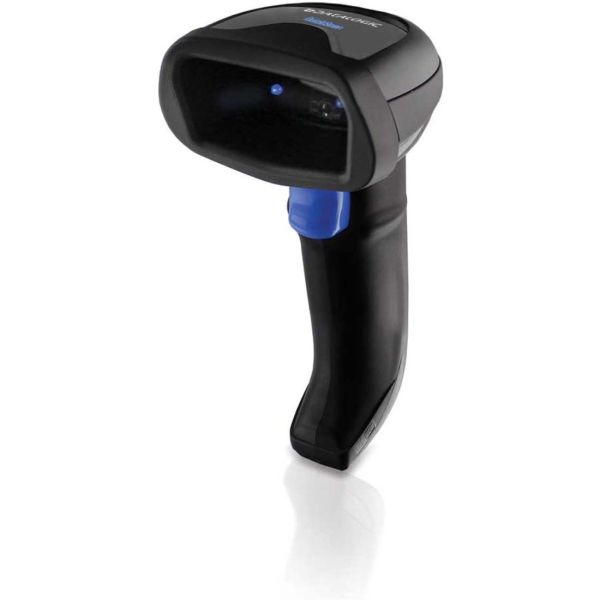

Datalogic QuickScan QBT2500 Barcode Scanner Kit

Marketing Information
IMAGING TECHNOLOGY

The market trend towards 2D barcodes has clearly spread across the whole data capture industry. This is particularly true at Retailers' where POS check-out activities face an increased need for 2D scanning and at the same time rely on reading mobile phone displays and loyalty cards.

THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT

The QuickScan 2500 2D imager is your trusted companion at the POS check-out. It knows very well the importance of prompt readings, whatever the barcode, regardless of whether it's hard-to-read, poorly printed or damaged, and it easily scans mobile devices and through plexiglass barriers, all at an incredibly affordable price.

EXTREME PRECIS...ION CONVEYED

A sense of extreme precision is conveyed to the operator at any time, facilitating their job by clearly showing where the scanner is pointing. From the intuitive blue dot of the QW model, you can even get all the extra-precision you need with the outstanding aimer of the QD, QM and QBT models, made of two blue sharply-defined triangles. Datalogic's 'Green Spot' technology then confirms the good read, perfectly centered on the barcode and between the two triangles, backed up by a powerful beeper that can be adjusted to your preferred level of sound. Overall, the soft red illumination lowers fatigue on the operator's eyes.

GO CORDLESS, AT YOUR CONVENIENCE

Featuring narrow band radio communications with Datalogic's STAR Cordless System™ (QM models) or Bluetooth® wireless technology (QBT models), the QuickScan 2500 provides the broadest choice, to best manage delivery even in times of shortage of Bluetooth micro-chips. STAR radio ensures interference-free communication with low sensitivity to obstacles, avoiding delays and increasing productivity, particularly in busy environments with Bluetooth and Wi-Fi. Featuring the distinctive design and family feeling of the Datalogic general purpose handheld scanners, the QuickScan 2500 series offers a variety of stands and accessories to best fit in any in-store environment.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: QBT2500BKBTK
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: QuickScan
Product Series: 2500
Product Model: QBT2500
Product Name: QuickScan QBT2500 Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

• Aztec Code
• China Han Xin Code
• Data Matrix
• MaxiCode
• Micro QR Code
• QR Code
• Dot code

Postal Codes:

• Australian Post
• British Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC)

Stacked Codes:

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MacroPDF
• MicroPDF417
• PDF417
• UPC A/E Composites

Digital Watermarking:

• Digimarc Barcodes (QD2500, QM2500, QBT2500 only)

Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanner Range: Standard Range
Scanning Distance: 510 mm
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 762 mm/s
Image Formats:

• BMP
• JPEG
• TIFF

Maximum Ambient Light: 110000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 0.25 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface:

• Serial
• USB
• Keyboard Wedge

Battery Information
Battery Included: Yes
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Weight (Approximate): 207 g
Miscellaneous
Ingress Protection (IP) Rating: IP52
Application/Usage:

• Industrial
• Retail
• Smartphone
• Commercial Service
• Hospitality
• Ticketing
• Transportation
• Government
• Healthcare
• Laboratory
• Pharmacy
• Light/Clean Manufacturing
