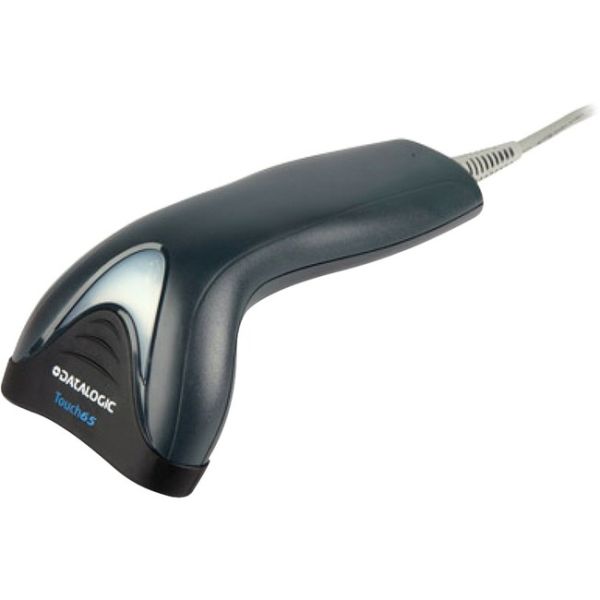

Datalogic General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit

Marketing Information

The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.

Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: TD1120-BK-65K1
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
<...span>Product Line: Touch
Product Series: TD1100
Product Model: 65 Lite
Product Name: General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

1D / Linear Codes:

• Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes:

• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional

Image Sensor Type:

• Imager
• Linear

Maximum Scan Resolution: 0.10 mm
Depth of Field:

• 0" - 3.2"@7.5mil - Code 39
• 0" - 4.7"@10mil - Code 39
• 0" - 6"@13mil - EAN13

Scan Pattern: Omni-directional
Scanning Distance: 150 mm
Cable Type Included: USB
Reading Angle (Skew): 70°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 20000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 0.19 mm
Maximum Element Resolution (Code 39): 0.25 mm
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Color Family: Black
Product Color: Black
Height: 160 mm
Width: 58.4 mm
Depth: 83.8 mm
Weight (Approximate): 130.4 g
Miscellaneous
Package Contents:

• General Purpose Corded Handheld Contact Linear Imager Bar Code Reader
• Holder
• USB Cable

Additional Information:

USB Cable separate

Application/Usage: Library
Country of Origin: Vietnam
Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
