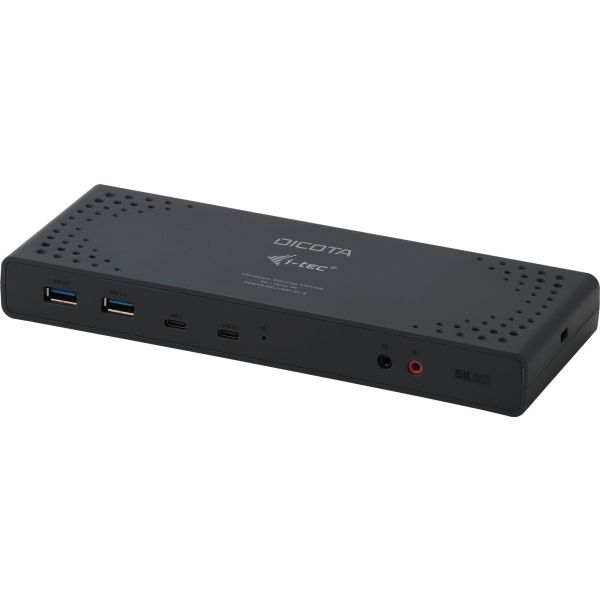

Dicota USB-C 13-in-1 Docking Station 5K HDMI/DP PD 65W (UK)

Marketing Information

Enhance your notebook, tablet or smartphone, utilising USB-C or USB-A connectivity. This Thunderbolt™ 3 compatible USB-C dual monitor docking station features the latest DisplayLink DL9650 chipset and offers the flexibility of both USB-C and USB-A host interfaces. A connecting cable with both ends (USB-C for C, USB-C for A) is a part of the package. As far as the docking station is connected either to a laptop or to a tablet that supports charging-up at its USB-C or Thunderbolt™ 3 port, then it is able to provide the power supply (Power Delivery) up to 65W.

The unit is equipped with four graphics outputs, 2x HDMI, and 2x DisplayPort. Connect two monitors simultaneously and enjoy the higher 4096 x 2160 resolution @ 60 Hz,... using any interface configuration (DP + DP, DP + HDMI, HDMI + HDMI). 5K resolution (5120 x 2880 @ 60 Hz) is supported when a single monitor is connected via two DisplayPort cables. 4x USB-A 3.0 ports make it easy to connect all of your existing hardware and Gigabit Ethernet RJ45 port provides reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on/off switch can be found on the rear panel. This product contains a power plug for UK.

• Connect your notebook, tablet or smartphone to additional monitors and your favourite hardware via a single USB-C or USB-A port (cable included)
• Graphic interface: 2x HDMI and 2x Display Port. The docking station supports the connection of max. 2 monitors
• 4x USB-A 3.0 ports for connecting all existing hardware and accessories
• 2x USB-C 3.1 port for the connection of your devices with a support of USB-C, supporting high-speed data transfer (5 Gbps), a support of USB Hot Swapping function
• Features DisplayLink DL6950, VIA VL813 chipset
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps speeds, providing a robust and high-speed internet connection
• K-lock slot for added security
• Combo 3.5 mm audio input/output jack for easy connection to headset or speakers
• Power-saving On/Off switch to reduce energy consumption when the docking station is not in use & power LED indicator
• 1x power supply input - external power adapter (output: DC 20V/5A)
• Supports Windows, MacOS, Linux, Android
• Package contents: Docking station, USB-C cable with USB-C to USB-A adapter (100 cm), Power adapter (DC cable 110cm, power cable 170cm), Manual

Specifications
Manufacturer: Dicota GmbH
Manufacturer Part Number: D31952-UK
Manufacturer Website Address: http://www.dicota.com/start.php?page=page_home&countryId=57
Brand Name: Dicota
Product Name: USB-C 13-in-1 Docking Station 5K HDMI/DP PD 65W (UK)
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Monitor
• Smartphone
• Tablet

Number of Displays Supported: 2
Screen Mode Supported: 5K
Supported Resolutions: 5120 x 2880
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Audio Line Out: Yes
Number of USB 3.0 Ports: 4
Number of USB 3.1 Type-C Ports: 2
Number of USB Type-A Ports: 2
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 2x USB-C 3.1 port for the connection of your devices with a support of USB-C
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
Microphone: Yes
Number of HDMI Ports: 2
HDMI: Yes
Thunderbolt: Yes
Software
Operating System Supported:

• macOS
• Android
• Linux
• Windows

Power Description
Maximum Power Supply Wattage: 65 W
Power Source Type: Power Adapter
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Portable
Height: 27 mm
Width: 223 mm
Depth: 88 mm
Weight (Approximate): 340 g
Miscellaneous
Kensington Security Slot: Yes
