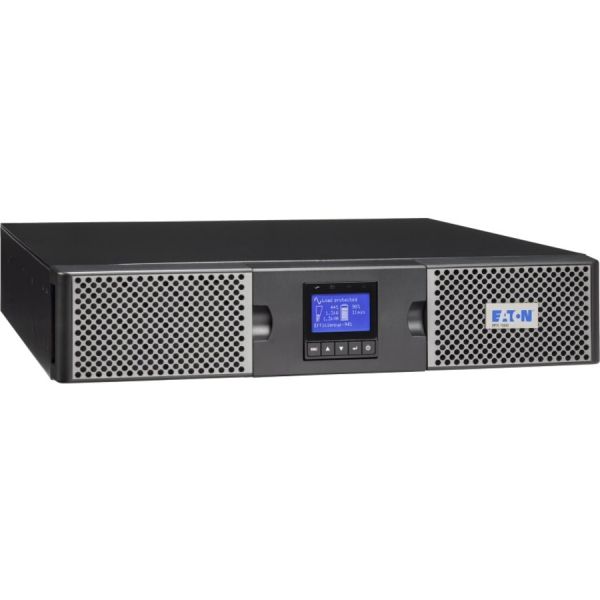

Eaton 9PX 1500VA Rack/Tower UPS

Marketing Information

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

TOPOLOGY

Online

POWER RATING

1 kVA - 22 kVA

FORM FACTOR

Rack/Tower

Now available in lithium-ion versions

with extended battery life of eight to ten years and technology that offers set-it-and forget-it deployment without the maintenance and refresh challenges of a UPS with lead-acid batteries.

Considerations f...or the lowest lifetime cost of a UPS

Hear from Eaton as we share our expertise to inform you of how you can lower your Total Cost of Ownership (TCO) and maximise availability of your UPS.

More power

Eaton 9PX (1-3kVA) is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS as well as powering more servers with equivalent VA ratings and lower power factors.

Energy Efficient

Energy Star qualified, the Eaton 9PX provides the highest efficiency level to reduce energy and cooling costs. 9PX can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton's Intelligent Power Software.

Virtualisation-ready

With an optional network card and Eaton's Intelligent Power® Software Suite compatible with all major OS 9PX seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Pay as you grow

The 9PX (5-11kVA) can be paralleled to achieve twice the power of unitary product using HotSync technology, without extra cost on the initial purchase.

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX1500IRTNBS
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Series: 9PX
Product Name: 9PX 1500VA Rack/Tower UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Phase: Single Phase
Application/Usage:

• Data Center
• IT Infrastructure

Power Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.50 kW
Input Voltage:

• 120 V
• 230 V

Input Voltage Range:

• 100 V - 276 V
• 176 V - 276 V

Output Voltage:

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Controls/Indicators
Status Indicators:

Multilingual Graphical LCD Display

Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 4
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Hot Swappable: Yes
Environmental Conditions
Sound Emission: 35 dB
Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Silver

Height: 240 mm
Width: 550 mm
Depth: 580 mm
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 19.43 kg
Miscellaneous
Package Contents:

• 9PX 1500VA Rack/Tower UPS
• Network Management Card
• 2 x IEC-IEC Output Cables
• USB Cable
• Serial Cable
• 2 x Brackets For 19' Mounting
• 2 x Rack-mounting Kit
• 2 x Supports For Tower Mounting
• Cable Locking System
• Safety Instructions
• Quickstart Guide
• BS Input Cord

Energy Star: Yes
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

2 year on battery
