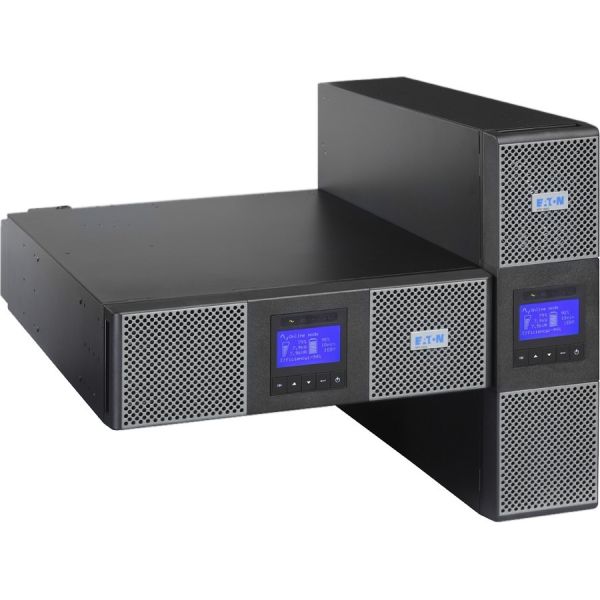

Eaton 9PX 2200VA Rack/tower UPS

Marketing Information

Performance and efficiency

• 9PX is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS as well as powering more servers with equivalent VA ratings and lower power factors.
• Energy Star qualified, the 9PX provides the highest efficiency level to reduce energy and cooling costs.
• Double conversion topology. The Eaton 9PX constantly monitors power conditions and regulates voltage and frequency.
• With a versatile Rack/Tower form factor, the 9PX is the most compact solution delivering up to 3000W in only 2U.

Manageability

• The graphical LCD display provides clear information on the UPS's status and measurements... on a single screen. Enhanced configuration capabilities are also available.
• 9PX can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton's Intelligent PowerTM Software.
• Load segment control enables prioritised shutdowns of non-essential equipment to maximize battery runtime for critical devices.
• 9PX offers Serial and USB connectivity, plus an extra slot for an optional communication card. Eaton's Intelligent Power Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Availability and flexibility

• 9PX 2200 & 3000 are available in RT2U format (optimised for rack mounting) or RT3U (for tower or short-depth racks), pedestal and rail kits are included with all models.
• The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as standard on HotSwap version) for easy replacement of the UPS.
• Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.
• More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary.

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX2200IRT2UBSL
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Series: 9PX
Product Name: 9PX 2200VA Rack/tower UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type:

• IEC 60320 C20 (16A)
• Terminal Block

Receptacle Type:

• IEC 60320 C13 (10A)
• IEC 60320 C19 (16A)

Receptacle Detail:

• 8 x IEC 60320 C13 (10A)
• 2 x IEC 60320 C19 (16A)

Cord Length: 1.80 m
Phase: Single Phase
Efficiency Detail:

• 93.5% (Online Mode)
• 98% (Hi-efficiency Mode)

Application/Usage:

• Data Center
• IT
• Infrastructure

Features: Built-in Bypass Switch
Power Description
Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 2.20 kW
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range:

• 176 V AC - 276 V AC
• 100 V AC - 276 V AC

Output Voltage:

• 240 V AC
• 200 V AC

Input Frequency:

• 40 Hz
• 70 Hz
• 50 Hz
• 60 Hz

Output Frequency:

• 50 Hz
• 60 Hz

Waveform Type: Sine Wave
Input Power Factor: 0.99
Output Power Factor: 1
Display & Graphics
Display: LCD
Management
Network Management:

• Network-MS Card
• ModBus-MS Card
• Relay-MS Card

Controls/Indicators
Status Indicators:

LED Indicators

Interfaces/Ports
Serial Port: Yes
USB: Yes
Battery Information
Number of Batteries: 6
Battery Characteristics: Valve-regulated, Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 3 Minute
Hot Swappable: Yes
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Maximum Operating Elevation: 3 km
Storage Relative Humidity: 0% - 96%
Sound Emission: 40 dB
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 2197.1 mm
Width: 11176 mm
Depth: 15367 mm
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 25 kg
Miscellaneous
Certifications & Standards:

• IEC/EN 62040-1
• UL 1778
• CSA 22.2
• IEC/EN 62040 -2
• FCC Class B
• CISPR22 Class B
• CE
• CB report (TUV)
• cULus
• EAC
• RCM
• KC
• FCC 15 /B
• IEC/EN 62040-2

Energy Star: Yes
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

3 years on electronics, 2 years on batteries
