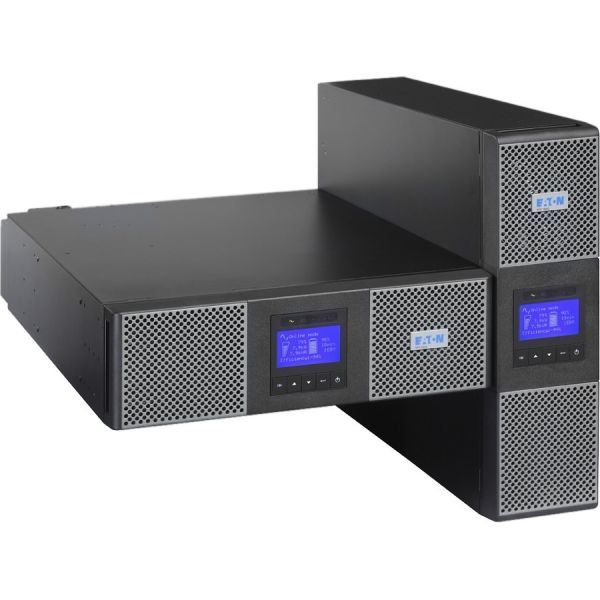

Eaton 9PX 3000VA Rack/Tower UPS

Marketing Information

Lithium-ion Online Double conversion UPS | Longer life

• 9PX lithium-ion UPSs features an expanded battery life of 8-10 years compared to the usual 3-5 years with VRLA batteries.
• Lithium-ion batteries eliminates the needs for battery replacement and attached costs (planning, labor, shipping).
• This longer life is backed by a five-year factory warranty including UPS electronics, internal batteries and EBMs.

Management and Cybersecurity

• Eaton Gigabit network management card provide Dual cyber security certifications (UL 2900-1 & IEC 62443-4-2), it's delivered as standard with Netpack UPS.
• Eaton's Intelligent Power Software seamlessly integrates with leading vi...rtualisation environments and cloud orchestrations tools.
• 9PX Lithium-ion can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton's Intelligent Power Software.
• Load segment control enables prioritised shutdowns of non-essential equipment to maximize battery runtime for critical devices.

High Performance

• Double conversion topology. The Eaton 9PX Lithium-ion constantly monitors power conditions and regulates voltage and frequency.
• Energy Star qualified, the 9PX Lithium-ion provides the highest efficiency level to reduce energy and cooling costs.
• Internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS.
• More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary.

Easy installation and upgrade

• Lighter weight: UPS weight reduced up to 20% and EBM weight reduced more than 40%.
• Smaller size: Battery extension size reduced to 1U saving space for IT equipment.
• Firmware upgrade can be done locally or remotely through the Gigabit Network management card.
• All models delivered with all necessary hardware for tower or rack-mounting.

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX3000IRTNBSL
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Series: 9PX
Product Name: 9PX 3000VA Rack/Tower UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: IEC 60320 C20
Receptacle Type:

• IEC 60320 C13 (10A)
• IEC 60320 C19 (16A)

Receptacle Detail:

• 8 x IEC 60320 C13 (10A)
• 2 x IEC 60320 C19 (16A)

Efficiency Detail: 94% (Online Mode)
Application/Usage:

• IT Equipment
• Data Center
• Network
• Storage
• Telecommunication
• Infrastructure
• Industrial
• Medical
• Mission Critical Equipment

Power Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.40 kW
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range: 100 V AC - 276 V AC
Input Frequency:

• 40 Hz
• 50 Hz
• 60 Hz
• 70 Hz

Display & Graphics
Display: LCD
Management
Network Management:

• Network Card
• Modbus TCP/RTU
• Relay-MS Card

Interfaces/Ports
Serial Port: Yes
USB: Yes
EPO Port: Yes
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Life: 10 Year
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Sound Emission: 35 dB
Physical Characteristics
Height: 86.5 mm
Width: 440 mm
Depth: 605 mm
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 22.80 kg
Miscellaneous
Package Contents:

• 9PX 3000VA Rack/Tower UPS
• BS Cord 16A

Certifications & Standards:

• IEC/EN 62040-1
• UL 1778
• CSA 22.2
• IEC/EN 62040 -2
• FCC Class B
• CISPR22 Class B
• CE
• CB report (TUV)
• EAC

Energy Star: Yes
Warranty
Limited Warranty: 5 Year
Additional Warranty Information:

5 years full warranty (eletronics, internal batteries and EBM)
