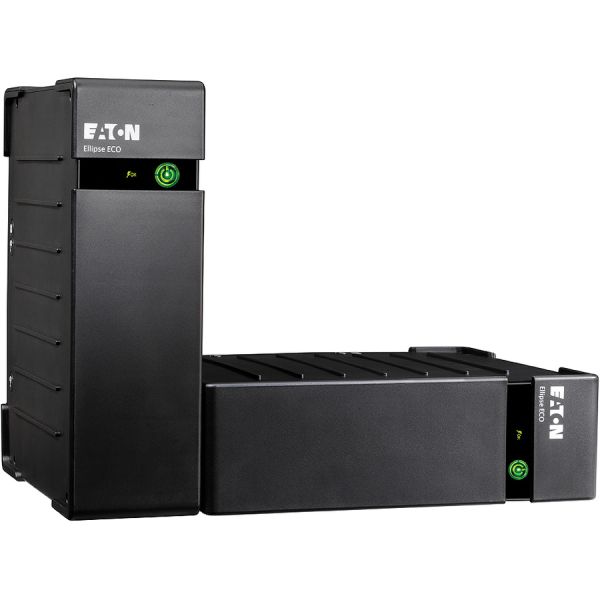

Eaton Ellipse ECO 800 VA Tower/Rack Mountable UPS

Marketing Information

Eaton's power quality business has more than 45 years of experience in designing and producing innovative power quality products. The result is an expansive portfolio of products, which help to protect our customer's business processes, critical applications and systems from all power problems and failures reliably and efficiently.

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: EL800USBIEC
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Line: Ellipse
Product Series: ECO
Product Model: EL800USBIEC
Product Name: Ellipse ECO 800 VA Tower/Rack Mountable UPS
Product Type: Standby UPS
Technical Information
Receptacle Detail:

• 3
• 1

Dataline Protection:

• RJ-11
• RJ-45

Power Description
Load Capacity (VA): 800 VA
Load Capacity (Watt): 500 W
Input Voltage: 220 V AC
Output Voltage:

• 240 V AC
• 230 V AC

Interfaces/Ports
USB: Yes
Battery Information
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Half Load): 11 Minute
Physical Characteristics
Height: 263 mm
Width: 81 mm
Depth: 235 mm
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 4.10 kg
Miscellaneous
Package Contents:

• Ellipse ECO 800 VA Tower/Rack Mountable UPS
• USB Cable
• Eaton Intelligent Power Software Suite CD

Certifications & Standards:

• IEC 62040-1
• IEC 60950-1
• IEC 62040-2
• CB Report
• CE mark
• IEC 61643-1
• IEC 62040-1-1

Software Included: Eaton Intelligent Power Software Suite
Warranty
Limited Warranty: 2 Year
