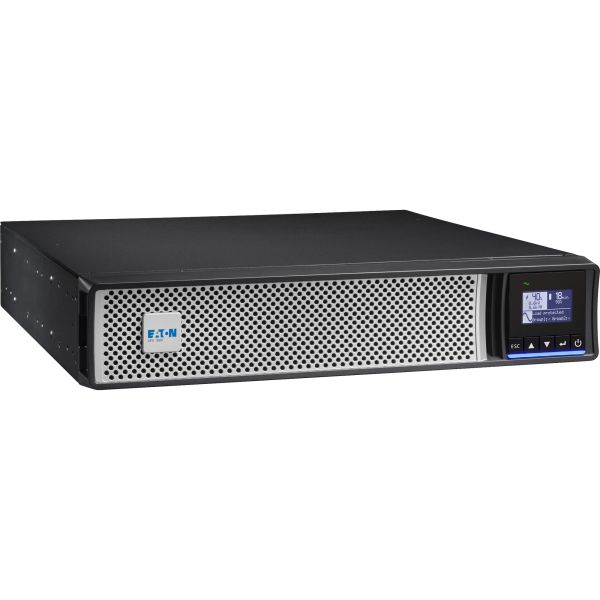

Eaton 5PX 1500VA Rack/Tower Line-interactive UPS

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: 5PX1500IRT2UG2BS
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Series: 5PX
Product Name: 5PX 1500VA Rack/Tower Line-interactive UPS
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Phase: Single Phase
Power Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.50 kW
<...span>Input Voltage: 230 V AC
Input Voltage Range: 160 V - 294 V
Output Voltage:

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Input Frequency: 70 Hz
Waveform Type: Sine Wave
Controls/Indicators
Status Indicators:

Multilingual graphical LCD display

Interfaces/Ports
Serial Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 12 V DC
Number of Batteries: 4
Battery Characteristics: Maintenance-free
Battery Chemistry: Lead Acid
Battery Capacity: 9000 mAh
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Silver

Height: 240 mm
Width: 498 mm
Depth: 585 mm
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 22.50 kg
Miscellaneous
Package Contents:

• 5PX 1500VA Rack/Tower Line-interactive UPS
• Rack-mounting Kit
• 2 x Supports for Tower Mounting
• Cable Locking System
• USB Cable
• Serial Cable
• 2 x IEC-IEC Cables
• Quickstart Guide
• Safety Instructions
• BS Input Cord

Energy Star: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

2 year on battery
