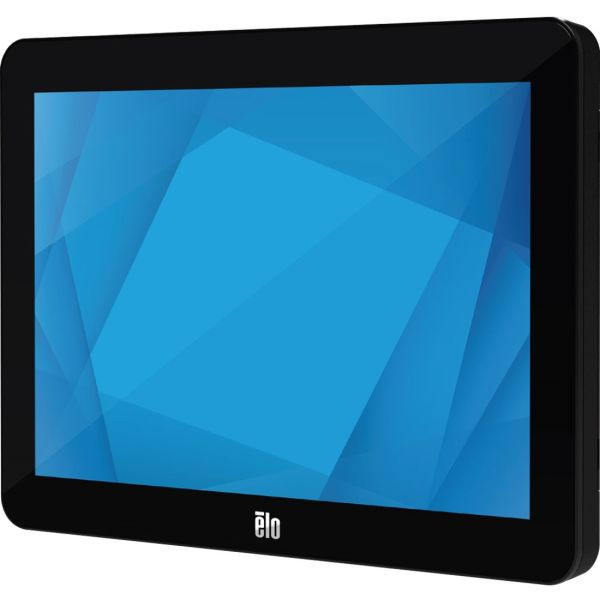

Elo 1002L Touchscreen Monitor

Marketing Information

The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection

The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is ...a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.
One for Your Customers.

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for...

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E155834
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Series: 02
Product Model: 1002L
Product Name: 1002L Touchscreen Monitor
Packaged Quantity: 1
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size Class: 10"
Viewable Screen Size: 25.7 cm (10.1")
Screen Mode: WXGA
Screen Surface: Anti-glare
Panel Technology: Thin Film Transistor (TFT)
Response Time: 29 ms
Aspect Ratio: 16:10
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 170°
Mount Type: Rear Mount
Placement: Tabletop
Backlight Technology: LED
Features:

• Anti-glare
• On-screen Display (OSD)
• Cable Lock Slot

Horizontal Frequency: 31.50 kHz to 80 kHz
Vertical Frequency: 60 Hz
Curved Screen: No
Video
Maximum Resolution: 1280 x 800
Standard Refresh Rate: 60 Hz
Colour Supported: 262,000 Colors
Native Contrast Ratio: 800:1
Brightness: 350 cd/m²
Maximum Refresh Rate: 60 Hz
Audio
Speakers: Yes
Number of Speakers: 2
Speaker Output Power: 4 W
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
USB Type-C: Yes
Number of USB Ports: 4
Total Number of USB Type-C Ports: 1
Built-in Devices
Built-in Devices: USB Hub
Power Description
Input Voltage:

• 12 V DC
• 120 V AC
• 230 V AC

Operating Power Consumption: 7.43 W
Standby Power Consumption: 1.26 W
Off-Mode Power Consumption: 200 mW
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Color Family: Black
Product Color: Black
Height: 177.5 mm
Width: 254.8 mm
Depth: 29 mm
Weight (Approximate): 884.5 g
Miscellaneous
Certifications & Standards:

• Canada cUL, IC
• Europe CE
• Japan VCCI
• United States UL, FCC
• China CCC
• Korea, KCC, e-standby
• Australia RCM
• Mexico NOM
• Taiwan BSMI
• International CB
• RoHS
• China RoHS
• WEEE
• REACH
• India BIS
• Russia EAC

Mean Time Between Failures (MTBF): 5.7 Year
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
