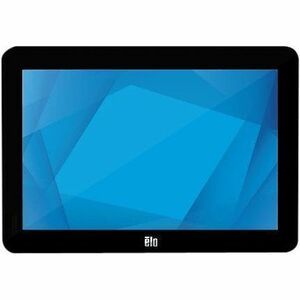

Elo 1002L Widescreen LED Monitor

Marketing Information

Elo's 1002LTouchscreen Monitor

The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection

The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up fr...om 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.One for Your Customers.

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for...

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

EMV Cradles

The ability to take payment is essential to complete a transaction. The 1002L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

Barcode Scanner

Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

MSR

Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Mount with Flexibility

Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

Brilliant Displays from 7 to 27-inches

The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Built-to-Last

The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E324341
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1002L
Product Name: 1002L Widescreen LED Monitor
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 10"
Viewable Screen Size: 25.7 cm (10.1")
Screen Mode: WXGA
Panel Technology: Thin Film Transistor (TFT)
Response Time: 29 ms
Response Time Details: 29ms Typical
Aspect Ratio: 16:10
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 170°
Mount Type:

• Wall Mountable
• Floor Mountable
• Bracket Mount
• Pole-mountable

Backlight Technology: LED
Features:

• Anti-glare
• On-screen Display (OSD)
• OSD/Power Lock
• Wide Viewing Angle

Horizontal Frequency: 31.50 kHz to 82 kHz
Vertical Frequency: 60 Hz
Ingress Protection (IP) Rating: IPX1
Impact Protection (IK) Rating: IK04
Active Display Area (H x V): 216.90 mm x 135.60 mm
Video
Maximum Resolution: 1280 x 800
Colour Supported: 262,000 Colors
Native Contrast Ratio: 800:1
Brightness: 350 cd/m²
Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
USB Type-C: Yes
Total Number of HDMI Ports: 1
Number of USB Ports: 4
Number of VGA Ports: 1
Total Number of USB Type-C Ports: 1
Environmental Conditions
Operating Temperature Range: 0°C to 40°C
Operating Humidity Range: 20% to 80% (Non-condensing)
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Color Family: Black
Colour: Black
Height: 177.5 mm
Width: 254.8 mm
Depth: 29 mm
Weight (Approximate): 884.5 g
