Elo 1790L 17" Open Frame Touchscreen (Rev B)
£417.16
Limited Stock: Only 0 available
Elo 1790L 17" Open Frame Touchscreen (Rev B)
Elo 1790L 17" Open Frame Touchscreen (Rev B) is available to buy in increments of 1
Categories: Touchscreen Monitors, Default Category
| Touchscreen Type | IntelliTouch Surface Wave |
|---|---|
| Aspect Ratio | 5:4 |
| Contrast Ratio | 800:1 |
| Response Time | 5 ms |
| Brightness | 250 cd/m² |
| Colour Supported | 16.7 Million Colours |
| Mount Type | Front Mount/Rack-mountable |
| Viewable Screen Size | 43.2 cm (17") |
| Maximum Resolution | 1280 x 1024 |
| Brand Name | Elo |
| Screen Mode | SXGA |
| Touchscreen | Yes |
| Standard Refresh Rate | 75 Hz |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | LED |
| VESA Mount Compatible | Yes |
| Standby Power Consumption | 1.50 W |
| VGA | Yes |
| DisplayPort | Yes |
| Off-Mode Power Consumption | 500 mW |
| Panel Technology | Thin Film Transistor (TFT) |
| Curved Screen | No |
| TAA Compliant | No |
| Screen Size Class | 17" |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS)/Restriction of Hazardous Substances (RoHS)/Waste Electrical and Electronic Equipment Directive (WEEE) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E326942
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1790L
Product Name: 1790L 17" Open Frame Touchscreen (Rev B)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 17"
Viewable Screen Size: 43.2 cm (17")
Screen Mode: SXGA
Screen Surface: Anti-glare
Panel Technology: Thin Film Transistor (TFT)
Response Time: 5 ms
Aspect Ratio: 5:4
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Mount Type:
Backlight Technology: LED
Features:
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
Video
Maximum Resolution: 1280 x 1024
Standard Refresh Rate: 75 Hz
Colour Supported: 16.7 Million Colours
Contrast Ratio: 800:1
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Maximum Refresh Rate: 75 Hz
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: IntelliTouch Surface Wave
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.3
USB: Yes
USB Standard: USB 2.0
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.1a
Serial Port: Yes
Power Description
Input Voltage:
Operating Power Consumption: 17.80 W
Standby Power Consumption: 1.50 W
Off-Mode Power Consumption: 500 mW
Energy Consumption per Year: 30 kWh
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Black
Height: 306.3 mm
Width: 368.3 mm
Depth: 47.5 mm
Weight (Approximate): 3.60 kg
Miscellaneous
Certifications & Standards:
Mean Time Between Failures (MTBF): 5.7 Year
TAA Compliant: No
Environmental Compliance:

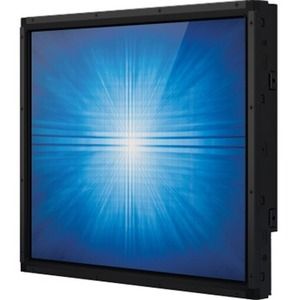

Elo 1790L Open Frame Touchscreen Display
The Elo 1790L 17-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E326942
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1790L
Product Name: 1790L 17" Open Frame Touchscreen (Rev B)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 17"
Viewable Screen Size: 43.2 cm (17")
Screen Mode: SXGA
Screen Surface: Anti-glare
Panel Technology: Thin Film Transistor (TFT)
Response Time: 5 ms
Aspect Ratio: 5:4
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Mount Type:
- Front Mount
- Rack-mountable
Backlight Technology: LED
Features:
- On-screen Display (OSD)
- Anti-glare
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
Video
Maximum Resolution: 1280 x 1024
Standard Refresh Rate: 75 Hz
Colour Supported: 16.7 Million Colours
Contrast Ratio: 800:1
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Maximum Refresh Rate: 75 Hz
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: IntelliTouch Surface Wave
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.3
USB: Yes
USB Standard: USB 2.0
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.1a
Serial Port: Yes
Power Description
Input Voltage:
- 12 V DC
- 120 V AC
- 230 V AC
Operating Power Consumption: 17.80 W
Standby Power Consumption: 1.50 W
Off-Mode Power Consumption: 500 mW
Energy Consumption per Year: 30 kWh
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Black
Height: 306.3 mm
Width: 368.3 mm
Depth: 47.5 mm
Weight (Approximate): 3.60 kg
Miscellaneous
Certifications & Standards:
- Australia RCM
- Canada cUL
- IC
- China CCC
- Europe CE TUV
- Japan VCCI
- Korea KCC
- Mexico CoC
- Taiwan BSMI
- United States UL
- FCC
- International CB
- RoHS
- China RoHS
- WEEE
Mean Time Between Failures (MTBF): 5.7 Year
TAA Compliant: No
Environmental Compliance:
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
