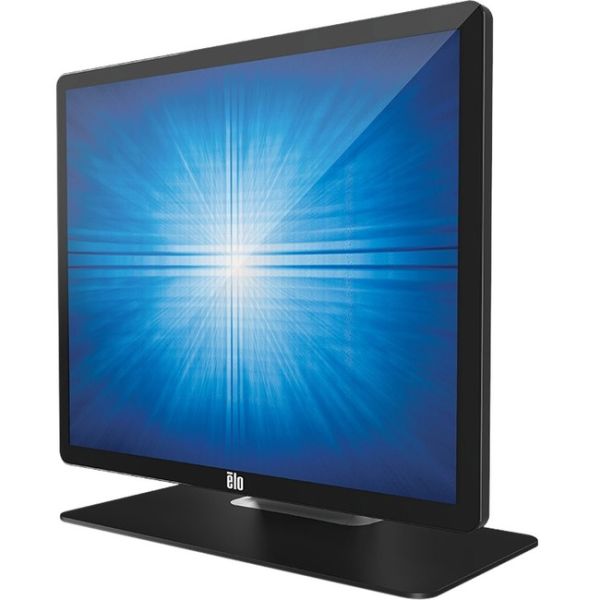

Elo 1903LM 19" Medical Grade Touchscreen Monitor

Marketing Information

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accu...rate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 -Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

Unified Style Across Sizes

This product is not an FDA-approved "medical device" or otherwise approved by the FDA and is not ISO-13485 compliant. Depending on the intended use, additional certifications may be required.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E658394
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Series: 03
Product Model: 1903LM
Product Name: 1903LM 19" Medical Grade Touchscreen Monitor
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size Class: 19"
Viewable Screen Size: 48.3 cm (19")
Screen Mode: SXGA
Response Time: 14 ms
Aspect Ratio: 5:4
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Desk Mountable
Backlight Technology: LED
Features:

• Anti-glare
• On-screen Display (OSD)

Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Video
Maximum Resolution: 1280 x 1024
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Brightness: 225 cd/m²
Audio
Speakers: Yes
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
Number of USB Ports: 4
Built-in Devices
Built-in Devices: USB Hub
Power Description
Operating Power Consumption: 16.36 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Product Color: Black
Height with Stand: 397.70 mm
Width with Stand: 429.60 mm
Depth with Stand: 193.40 mm
Weight (Approximate): 4.30 kg
Weight with Stand (Approximate): 6.30 kg
