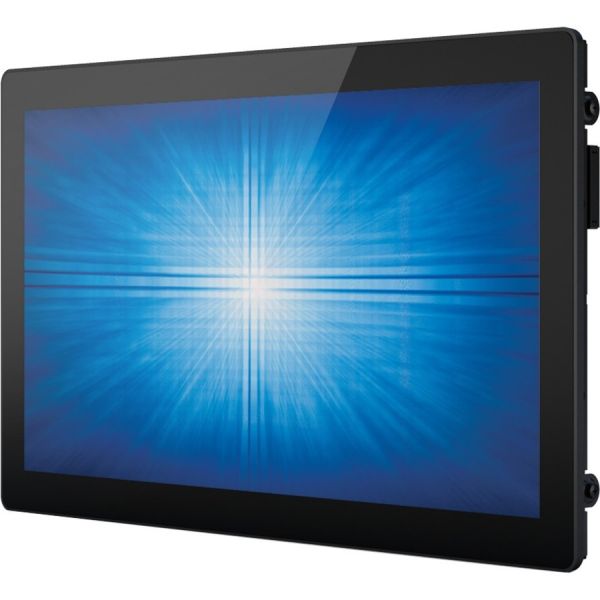

Elo 2094L 19.5" Open Frame Touchscreen (Rev B)

Marketing Information

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed agains...t dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

• Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
• Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
• 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
• Display Port and VGA video interfaces

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E331214
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 2094L
Product Name: 2094L 19.5" Open Frame Touchscreen (Rev B)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 20"
Viewable Screen Size: 49.5 cm (19.5")
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 20 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Flush Mount
Backlight Technology: LED
Features: On-screen Display (OSD)
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Colour Supported: 16.7 Million Colours
Contrast Ratio: 3,000:1
Brightness: 250 cd/m²
Maximum Refresh Rate: 75 Hz
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.3
USB: Yes
USB Standard: USB 2.0
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.1a
Power Description
Input Voltage:

• 12 V DC
• 120 V AC
• 230 V AC

Operating Power Consumption: 20 W
Standby Power Consumption: 1.50 W
Off-Mode Power Consumption: 500 mW
Energy Consumption per Year: 29 kWh
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Black
Height: 285 mm
Width: 479.3 mm
Depth: 40.4 mm
Weight (Approximate): 4.70 kg
Miscellaneous
Certifications & Standards:

• Australia RCM
• Canada cUL, IC
• China CCC
• Europe CE TUV
• Japan VCCI
• Korea KCC
• Mexico CoC
• Taiwan BSMI
• United States UL, FCC
• International CB
• RoHS, China RoHS, WEEE
• Russia EAC

Mean Time Between Failures (MTBF): 5.7 Year
TAA Compliant: No
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
