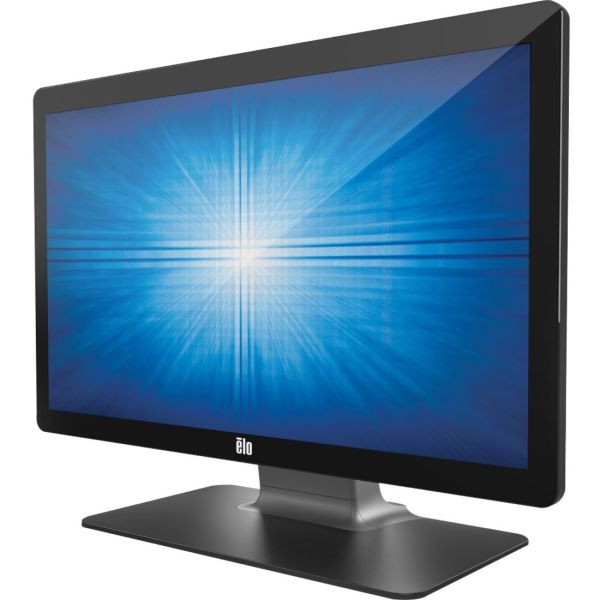

Elo 2202L 22" Touchscreen Monitor

Marketing Information

2202L Touchscreen Monitor

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches

The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, a...nd light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Connect your Accessories

From a barcode scanner to an EMV, Elo's 02-Series Monitors are compatible with a large set of peripherals purpose-built for commercial applications.

Fingerprint Reader

The Biometric Fingerprint Reader can be attached to provide secure and quick login.

MSR

Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Barcode Scanner

Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

NFC

The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.

Privacy Matters

Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.

One for You. One for Your Customers.

Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Privacy Matters

Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.

One for You. One for Your Customers.

Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility

Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E351600
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Series: 02
Product Model: 2202L
Product Name: 2202L 22" Touchscreen Monitor
Packaged Quantity: 1
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 14 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:

• Wall Mountable
• Pole Mount
• Shelf Mount

Placement: Tabletop
Backlight Technology: LED
Features:

• On-screen Display (OSD)
• Cable Lock Slot

Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Colour Supported: 16.7 Million Colours
Contrast Ratio: 3,000:1
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Maximum Refresh Rate: 75 Hz
Audio
Speakers: Yes
Number of Speakers: 2
Speaker Output Power: 4 W
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
USB Standard: USB 2.0
VGA: Yes
Built-in Devices
Built-in Devices: USB Hub
Power Description
Input Voltage:

• 12 V DC
• 120 V AC
• 230 V AC

Operating Power Consumption: 22.50 W
Standby Power Consumption: 690 mW
Off-Mode Power Consumption: 320 mW
Input Voltage Range: 100V to 240V
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Black
Height: 326.9 mm
Width: 526.8 mm
Depth: 42.7 mm
Height with Stand: 383.79 mm
Width with Stand: 526.80 mm
Depth with Stand: 193.29 mm
Weight (Approximate): 4.75 kg
Weight with Stand (Approximate): 6.75 kg
Miscellaneous
Certifications & Standards:

• Canada CUL, IC
• China CCC
• Europe CE
• Korea KCC
• Taiwan BSMI
• United States FCC, UL
• Japan VCCI
• International CB
• Australia RCM
• Russia EAC
• Mexico CoC
• India BIS
• RoHS
• China RoHS
• WEEE
• REACH

Mean Time Between Failures (MTBF): 5.7 Year
TAA Compliant: No
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
