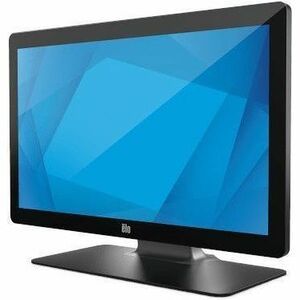

Elo 2202L 22" Touchscreen Monitor

Marketing Information

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches

The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch res...ponse and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Fingerprint Scanner

The Biometric Fingerprint Scanner can be attached to provide secure and quick login.

MSR

Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Barcode Scanner

Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

NFC

The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.

One for You. One for Your Customers.

Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility

Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

The Elo Advantage | Customization

Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized.

Global Reach

Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.

Long Life Cycle

We do everything in our power to minimize design changes and we've kept some monitors available to order for over seven years

Built-to-Last

The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E159758
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Series: 02
Product Model: 2202L
Product Name: 2202L 22" Touchscreen Monitor
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 14 ms
Response Time Details: 14ms Typical
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:

• Wall Mountable
• Pole Mount
• Shelf Mount

Backlight Technology: LED
Features:

• Wide Viewing Angle
• Anti-glare
• On-screen Display (OSD)
• OSD/Power Lock
• Bezel-less Design

Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Ingress Protection (IP) Rating: IPX1
Impact Protection (IK) Rating: IK06
Active Display Area (H x V): 474.98 mm x 266.70 mm
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Audio
Speakers: Yes
Number of Speakers: 2
Touchscreen Information
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
Number of USB Ports: 4
Built-in Devices
Built-in Devices: USB Hub
Environmental Conditions
Operating Temperature Range: 0°C to 40°C
Operating Humidity Range: 20% to 80% (Non-condensing)
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Black
Height: 326.9 mm
Width: 526.8 mm
Depth: 42.7 mm
Height with Stand: 383.79 mm
Width with Stand: 526.80 mm
Depth with Stand: 193.29 mm
Weight (Approximate): 4.75 kg
Weight with Stand (Approximate): 6.75 kg
