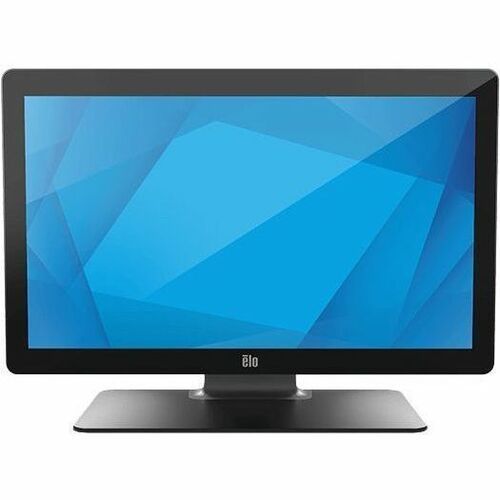

Elo 2203LM 22" Medical Grade Touchscreen Monitor

Marketing Information

DICOM Medical Grade Touchscreen Monitor

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate an...d uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 - Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy | Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

More from the Manufacturer

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E658788
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Series: 03
Product Model: 2203LM
Product Name: 2203LM 22" Medical Grade Touchscreen Monitor
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Response Time: 14 ms
Response Time Details: 14ms Typical
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:

• Arm-mountable
• Wall Mountable
• Cart Mountable

Backlight Technology: LED
Features:

• Privacy Filter
• Ergonomic Design
• Anti-glare
• On-screen Display (OSD)
• LED Indicator
• OSD/Power Lock

Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Ingress Protection (IP) Rating: IP54
Impact Protection (IK) Rating: IK06
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Audio
Speakers: Yes
Number of Speakers: 2
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
Number of USB Ports: 4
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Black
Height with Stand: 383.80 mm
Width with Stand: 526.90 mm
Depth with Stand: 193.40 mm
Weight (Approximate): 4.80 kg
Weight with Stand (Approximate): 6.75 kg
