1039252332

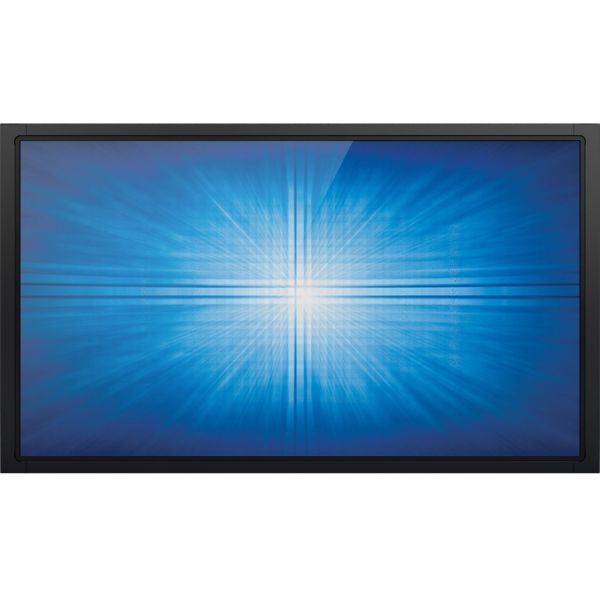

Elo 2294L 21.5" Open Frame Touchscreen (Rev B)
£420.16
Limited Stock: Only 0 available
Elo 2294L 21.5" Open Frame Touchscreen (Rev B)
Elo 2294L 21.5" Open Frame Touchscreen (Rev B) is available to buy in increments of 1
Categories: Touchscreen Monitors, Default Category
| Touchscreen Type | IntelliTouch Surface Wave |
|---|---|
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Brightness | 250 cd/m² |
| Colour Supported | 16.7 Million Colours |
| Mount Type | Front Mount/Rack-mountable |
| Viewable Screen Size | 54.6 cm (21.5") |
| Maximum Resolution | 1920 x 1080 |
| Brand Name | Elo |
| Screen Mode | Full HD |
| Touchscreen | Yes |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | LED |
| VESA Mount Compatible | Yes |
| Standby Power Consumption | 1.50 W |
| VGA | Yes |
| DisplayPort | Yes |
| Off-Mode Power Consumption | 500 mW |
| Screen Size Class | 22" |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)/China Restriction of Hazardous Substances (China RoHS)/Waste Electrical and Electronic Equipment Directive (WEEE) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2294L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is s...ealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® single- and dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E327914
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 2294L
Product Name: 2294L 21.5" Open Frame Touchscreen (Rev B)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Response Time: 14 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:
Backlight Technology: LED
Features: On-screen Display (OSD)
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: IntelliTouch Surface Wave
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.3
USB: Yes
USB Standard: USB 2.0
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.1a
Power Description
Input Voltage:
Operating Power Consumption: 25 W
Standby Power Consumption: 1.50 W
Off-Mode Power Consumption: 500 mW
Energy Consumption per Year: 39 kWh
Physical Characteristics
VESA Mount Compatible: Yes
Product Color: Black
Height: 298.2 mm
Width: 511 mm
Depth: 41.9 mm
Weight (Approximate): 5.10 kg
Miscellaneous
Certifications & Standards:
Mean Time Between Failures (MTBF): 5.7 Year
Environmental Compliance:
The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2294L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is s...ealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® single- and dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- High definition LCD display offers ultimate HD interactivity, clarity and resolution
- 10-touch TouchPro projected capacitive with two-touch Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing
- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Display Port and VGA video interfaces
Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E327914
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 2294L
Product Name: 2294L 21.5" Open Frame Touchscreen (Rev B)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Response Time: 14 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:
- Front Mount
- Rack-mountable
Backlight Technology: LED
Features: On-screen Display (OSD)
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: IntelliTouch Surface Wave
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.3
USB: Yes
USB Standard: USB 2.0
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.1a
Power Description
Input Voltage:
- 12 V DC
- 120 V AC
Operating Power Consumption: 25 W
Standby Power Consumption: 1.50 W
Off-Mode Power Consumption: 500 mW
Energy Consumption per Year: 39 kWh
Physical Characteristics
VESA Mount Compatible: Yes
Product Color: Black
Height: 298.2 mm
Width: 511 mm
Depth: 41.9 mm
Weight (Approximate): 5.10 kg
Miscellaneous
Certifications & Standards:
- Australia RCM
- Canada cUL
- IC
- China CCC
- Europe CE TUV
- Japan VCCI
- Korea KCC
- Mexico CoC
- Taiwan BSMI
- United States UL
- FCC
- International CB
- RoHS
- China RoHS
- WEEE
Mean Time Between Failures (MTBF): 5.7 Year
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
