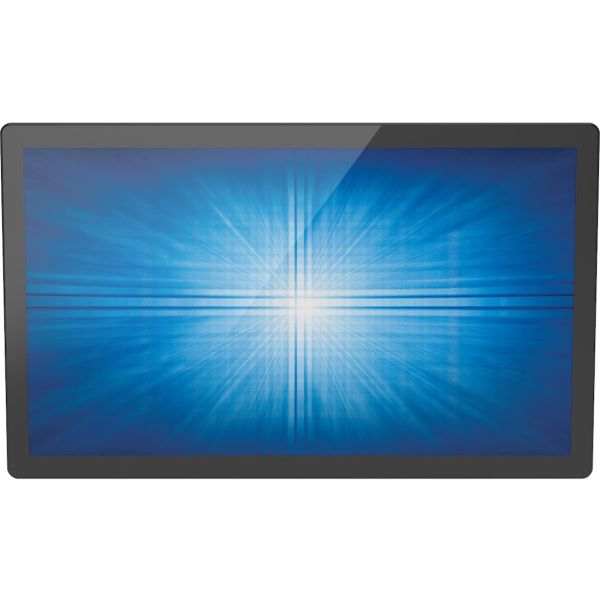

Elo 2494L 23.8" Open Frame Touchscreen

Marketing Information

Elo 2494L Open Frame Touchscreen Display

The Elo 2494L 24-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Enabling Partners to Build Smarter Kiosks

With EloView®...; and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install

Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass Enabled with PCAP

Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness's up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is
fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Built for Commercial Use

We pride ourselves on being one of the best manufacturers in the market - We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E493782
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Series: 90
Product Model: 2494L
Product Name: 2494L 23.8" Open Frame Touchscreen
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 24"
Viewable Screen Size: 60.5 cm (23.8")
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 16 ms
Response Time Details: 16ms Typical
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:

• Flush Mount
• Rear Mount

Placement: Tabletop
Backlight Technology: LED
Features:

• OSD/Power Lock
• On-screen Display (OSD)

Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 3,000:1
Brightness: 250 cd/m²
Touchscreen Information
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 200 x 100
Color Family: Black
Product Color: Black
Height: 341.1 mm
Width: 569.2 mm
Depth: 38.1 mm
Weight (Approximate): 6.17 kg
