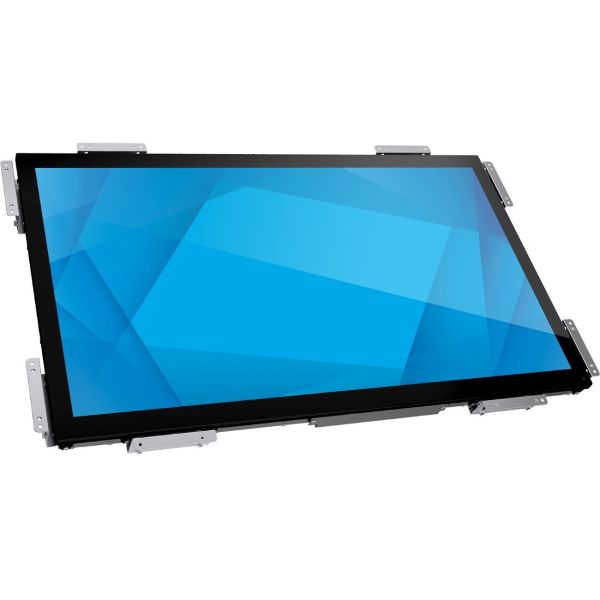

Elo 3263L 32-inch Full HD Open-Frame Touchscreen LCD Monitor

Marketing Information

The perfect touchscreen for any enclosure.

Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo's commercial-grade interactive displays offer the versatility to add touch to your solution.

Brilliant, interactiveTouchPro PCAP display.

The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.

Captivate customers and employees with reliable,easy to use interactive solutions.

...i>Payment and Ticketing
• Operating Room Control Board
• Point of Information
• Self-Order/Self-Checkout
• Automation/Industrial Controls
• Wayfinding & Interactive Signage

Designed for easy integration.

Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.

Get the viewing experience you want to see.

Whether viewing straight on or at an angle, close-up or from a distance, Elo's touchscreen displays offer optimal clarity for the viewing experience.

Place your touchscreen behindan extra layer of protection.

For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

Make your digital transformation faster,and more affordable.

Elo EssentialEdge™ for Android offers everything you need to build and operate interactive solutions for your business.

The Elo Backpack brings computing power that scales.

With the Elo Backpack you get a powerful, commercial-grade Android compute engine purpose-built to fit in compact spaces. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E343671
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 3263L
Product Name: 3263L 32-inch Full HD Open-Frame Touchscreen LCD Monitor
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 32"
Viewable Screen Size: 80 cm (31.5")
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 8 ms
Response Time Details: 8ms Typical
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Anti-glare
• On-screen Display (OSD)
• OnScreen Control
• Ambient Light Sensor

Horizontal Frequency: 31.50 kHz to 80 kHz
Vertical Frequency: 47 Hz to 63 Hz
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 3,000:1
Brightness: 500 cd/m²
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 40
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 400 x 200
Color Family: Black
Product Color: Black
Height: 452.6 mm
Width: 747.3 mm
Depth: 54.9 mm
Weight (Approximate): 10.96 kg
Miscellaneous
Energy Star: Yes
