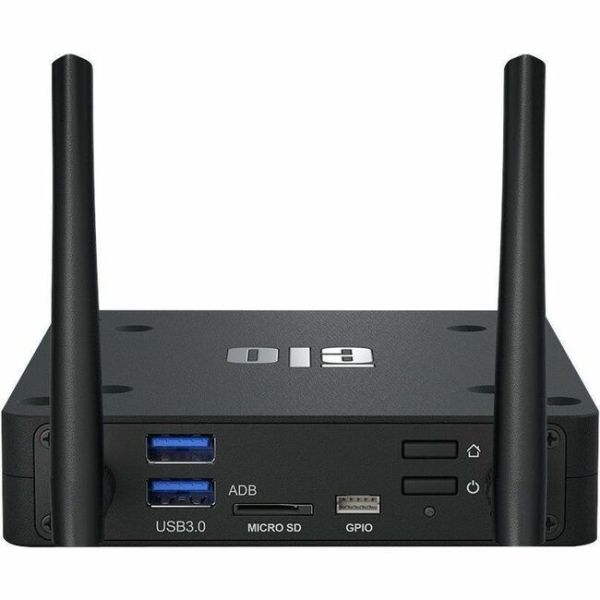

Elo Backpack Digital Signage Appliance

Marketing Information

The Elo Backpack is a powerful, commercial-grade Linux PC complete with a low-power, high-performance Rockchip processor. Purpose-built to fit in compact spaces, the Elo Backpack boasts a small footprint in both size and weight and can secure to any counter or in a kiosk easily with the built-in 75 mm or 100 mm VESA mount.

Designed to simplify scaling Elo's enterprise Linux platform across sizes and form factors, simply pair the Elo Backpack with any Elo touchscreen from 7-65 inches to create a consistent deployment that is cost effective and optimized for commercial use.

With decades of development and customizations made to support global enterprise customers, Elo's Linux-based platform offers Linux device drivers, uniform S...DKs, a constantly growing set of tools and an expansive lineup across sizes and form factors.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E143585
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Line: Backpack
Product Name: Backpack Digital Signage Appliance
Product Type: Digital Signage Appliance
Processor & Chipset
Processor Model: RK3399
Processor Core: Single-core (1 Core)
Memory
Standard Memory: 4 GB
Memory Technology: LPDDR4
Display & Graphics
Display Resolution: 3840 x 2160
Graphics Modes: 4K UHD
Video
Scan Format: 2160p
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Number of USB 3.0 Ports: 4
USB Type-C: Yes
Number of Network (RJ-45) Ports: 1
Software
Operating System: Linux Debian 10
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Minimum Storage Temperature: -20°C
Maximum Storage Temperature: 50°C
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 10%
Maximum Storage Humidity: 95%
Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Standard: 100 x 100
Height: 2.5 cm
Width: 11.4 cm
Depth: 13.9 cm
Weight (Approximate): 370 g
Miscellaneous
Application/Usage:

• Commercial
• Kiosk
