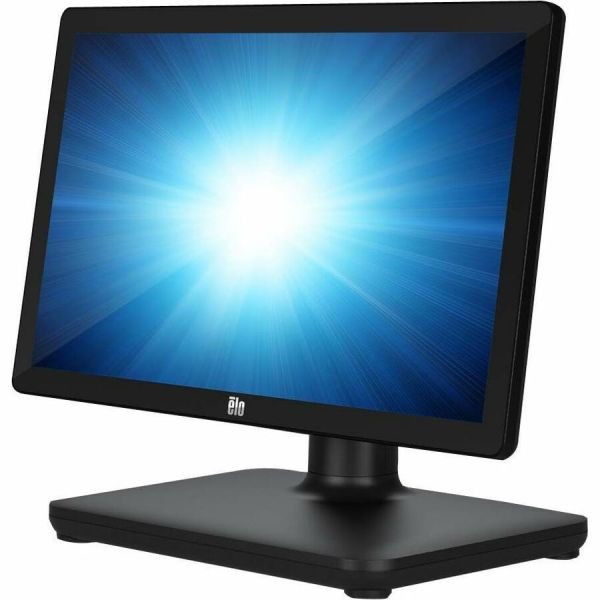

Elo 22-inch EloPOS System

Marketing Information

EloPOS™ System | Modern. Modular. Made for Retail.

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 21.5-inch touchscreen display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo's standard 3-year warranty.

Interactive Points of Sale

The EloPOS System is designed to offer flexibili...ty across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.

Connections. Connections. Connections.

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.

Configure Your Solution

EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.

Add a Customer-Facing Display with Ease

The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E417915
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Line: EloPOS
Product Model: E417915
Product Name: 22-inch EloPOS System
Product Type: POS Terminal
Technical Information
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0
Form Factor: All-in-One
Features: Anti-glare
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Core i5
Processor Speed: 3.60 GHz
Memory
Standard Memory: 16 GB
Memory Technology: DDR4 SDRAM
Storage
Solid State Drive Capacity: 256 GB
Solid State Drive Interface: M.2/SATA
Display & Graphics
Screen Size: 54.6 cm (21.5")
Active Display Size (Horizontal): 476 mm
Active Display Size (Vertical): 267.72 mm
Display Screen Type: TFT
Touchscreen: Yes
Touchscreen Technology: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touch Points: 10
Aspect Ratio: 16:9
Contrast Ratio: 1,000:1
Response Time: 14 ms
Colour Supported: 16.7 Million Colours
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Graphics Controller Model: UHD Graphics 630
Network & Communication
Wireless LAN: Yes
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
USB: Yes
Powered USB: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Cash Drawer Port: Yes
Serial Port: Yes
Number of Micro USB 2.0 Ports: 4
Number of USB 2.0 Ports (Rear): 2
Number of USB 3.0 Ports: 3
Number of USB Type C Ports: 1
Built-in Devices
Number of Speakers: 2
Speaker Power: 2 W
Software
Operating System: Windows 10 IoT Enterprise LTSC (64-bit)
Power Description
Power Source:

• AC Power
• DC Power

Physical Characteristics
Color Family: Black
Product Color: Black
Mount Type: Wall Mountable
Weight (Approximate): 8.89 kg
Miscellaneous
Energy Star: Yes
