Elo M51 POS Terminal

Marketing Information

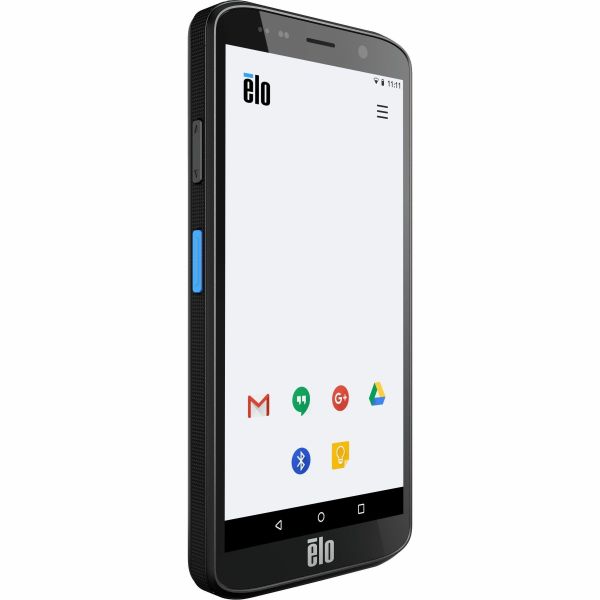

M51 Rugged Mobile Computer

The M51 rugged mobile computer delivers a 6-inch full HD touch display, Android 14 OS, powerful Qualcomm 6490 octa- core processor, integrated NFC and optional 2D barcode scanner. From enhancing retail store operations and warehouse management to ticketing - boost efficiency with the M51 mobile computer.

Propel your productivity.

• Qualcomm 6490 octa-core processor
• Android 14 with GMS & OS 360*
• Warm-swappable 4,500 mAh battery
• 12 hour battery life**
• WiFi 6E, 5G LTE & Bluetooth 5.2

6-inch full HD display.

The M51 Android mobile computer offers a brilliant, 6-inch FHD multi-touch display complete with chemi...cally strengthened glass.

Integrated NFC

With the integrated NFC, customers can quickly and easily tap contactless payments through the glass.

Barcode Scanner

With the optional 2D barcode scanner, you can easily manage inventory, expedite queues, fulfill curbside pickups, or scan ticket at venues.

Integrated Cameras

The M51 offers an integrated 13MP auto-focus rear camera and a 8MP fixed-focus front camera.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E450234
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: M51
Product Name: M51 POS Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wired/Wireless
Scanning Capability:

• 2D
• 1D

Scan Engine Model: SE4100
Google Mobile Services (GMS): Yes
Sensor Type:

• Proximity
• Accelerometer
• Light Sensor

Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Nano/eSIM
Brightness: 500 cd/m²
Features:

• Corning Gorilla Glass
• Water Resistant
• Multi-color LED Notification

Drop Specification:

• 4ft/1.2m drops per MIL810-G
• 6ft/1.8m drops with the protective boot per MIL 810-G

Processor & Chipset
Processor Model: QCM6490
Processor Core: Octa-core (8 Core)
Processor Speed: 2.70 GHz
Memory
Standard Memory: 8 GB
Flash Memory: 128 GB
Memory Card Slot: Yes
Memory Card Supported:

• microSD
• SDXC

Maximum Memory Card Size Supported: 1 TB
Display & Graphics
Screen Size: 15.2 cm (6")
Screen Mode: Full HD+
Screen Resolution: 2160 x 1080
Display Screen Type: LCD
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 2
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Near Field Communication (NFC): Yes
Cellular Data Connectivity Technology:

• 5G
• 4G
• 3G
• LTE
• 5G LTE

GPS: Yes
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 8 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 14
Upgradable Operating System: Android 16
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 4520 mAh
Battery Included: Yes
Maximum Battery Run Time: 12 Hour
Battery Voltage: 3.85 V
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 60°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Product Color: Black
Rugged: Yes
Weight (Approximate): 298 g
Miscellaneous
Package Contents:

• M51 Mobile Computer
• Power Adapter with US. EU and UK plugs
• 1.8M USB- C Cable
• Quick Install Guide

Application/Usage:

• Warehouse
• Retail

Ingress Protection (IP) Rating: IP68
