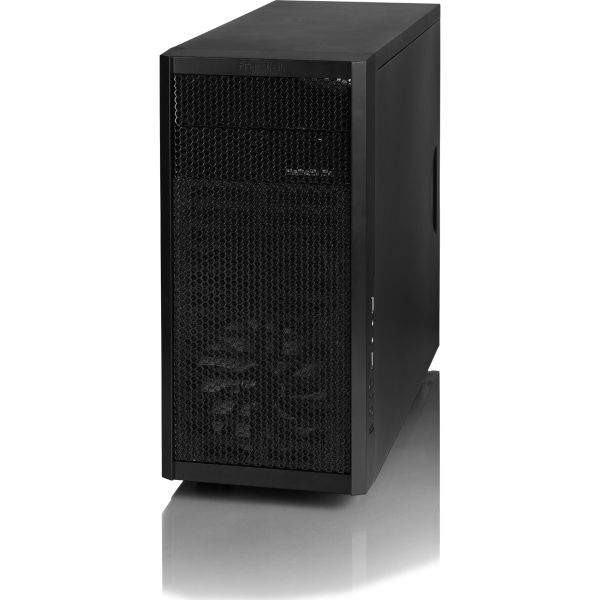

Fractal Design Core 1000 USB 3.0

Marketing Information

The Fractal Design Core Series offers a unique combination of design, cooling performance and value.
The Core 1000 USB 3.0 brings forth many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm in length as a result of the innovative, vertical HDD mounting bracket. The front panel is easily removable and pre-fitted with fan filters to ensure a dust free interior.

The sleek black interior is contrasted with white expansion slots while all HDD mountings are fitted with anti-vibration silicone grommets for optimal silence.
Specifications
Manufacturer: Fractal Design
Manufacturer Part Number: FD-CA-CORE-1000-USB3-BL
Ma...nufacturer Website Address: http://www.fractal-design.com
Brand Name: Fractal Design
Product Line: Core
Product Series: 1000
Product Model: FD-CA-CORE-1000-USB3-BL
Product Name: Core 1000 USB 3.0
Product Type: Computer Case
Technical Information
Motherboard Supported:

• Micro ATX
• Mini ITX
• DTX

Number of Fans Supported: 3
Number of Fans Installed: 1
Fan Size Supported:

• 120 mm
• 92 mm

Installed Fan Size: 120 mm
Bays
Number of External 5.25" Bays: 2
Number of Internal 3.5" Bays: 2
Number of Total Expansion Bays: 4
I/O Expansions
Total Number of Expansion Slots: 4
Interfaces/Ports
Total Number of USB Ports: 2
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Power Description
Number of Power Supplies Supported: 1
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Steel
Form Factor: Mid-tower
Height: 355 mm
Width: 175 mm
Depth: 420 mm
Weight (Approximate): 4.10 kg
