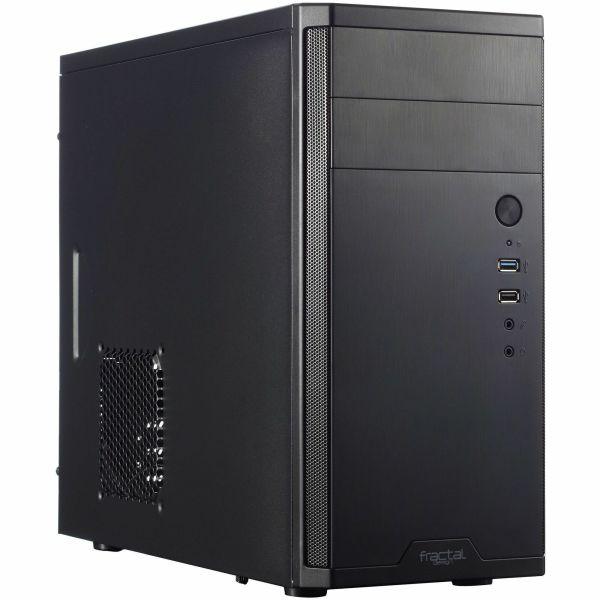

Fractal Design Core 1100

Marketing Information

This case is optimized for airflow with a straight cooling path, a pre-installed 120 mm fan and dust filters in the front panel. The innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both 3.5" drive slots come with silicone vibration dampening grommets.

• An extremely compact micro ATX case, designed for exceptional airflow and cooling
• Brushed aluminum-look front panel with a sleek, three-dimensional textured finish and a fully painted interior, with Fractal Design signature white details
• One Fractal Design 120 mm fan included
• Easy access I/O on front panel with audio, USB 3.0 and USB 2.0 ports
• Front panel dust filters and ...closed top and bottom panels help maintain a dust free interior
• The vertical HDD bracket can hold two 3.5" drives or three 2.5" drives (or one drive of each size) with vibration-dampened mounting for both 3.5" drive slots

Brushed aluminum

Brushed aluminum-look front panel with a sleek, three-dimensional textured finish

1x 120 mm fan included

One Fractal Design 120 mm fan included

Smart HDD Bracket

Vertical HDD bracket, which can hold two 3.5" drives or three 2.5" drives, or one drive of each size

Specifications
Manufacturer: Fractal Design
Manufacturer Part Number: FD-CA-CORE-1100-BL
Manufacturer Website Address: http://www.fractal-design.com
Brand Name: Fractal Design
Product Line: Core
Product Series: X3
Product Model: FD-CA-CORE-1100-BL
Product Name: Core 1100
Product Type: Computer Case
Technical Information
Motherboard Supported:

• Micro ATX
• Mini ITX

Number of Fans Supported: 1
Number of Fans Installed: 1
Fan Size Supported:

• 120 mm
• 92 mm

Installed Fan Size: 120 mm
Installed Fan Size Details: 1 x 120mm
Features: Dust Filter
Bays
Number of Internal 3.5" Bays: 2
Number of Internal 2.5" Bays: 3
I/O Expansions
Total Number of Expansion Slots: 4
Interfaces/Ports
Total Number of USB Ports: 2
USB Port Details:

• 1 x USB 3.0
• 1 x USB 2.0

Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Brushed Aluminium
Cooler Type: Fan/Liquid Cooler
Maximum CPU Cooler Height: 148 mm
Maximum PSU Length: 185 mm
Maximum GPU Length: 350 mm
Height: 358 mm
Width: 175 mm
Depth: 410 mm
Weight (Approximate): 3.80 kg
