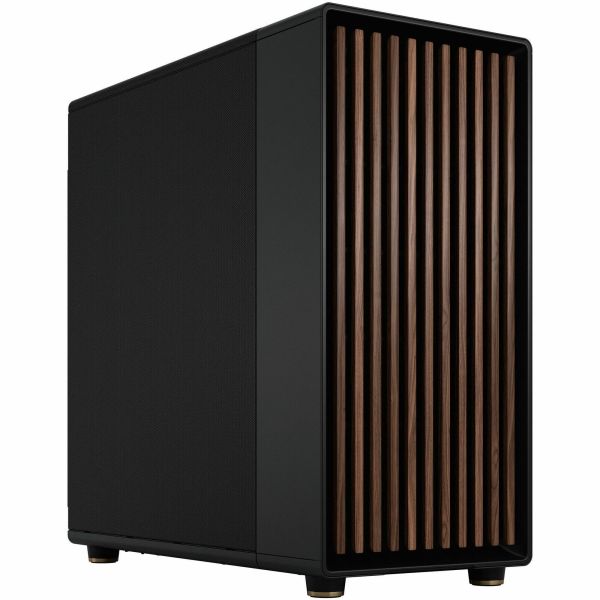

Fractal Design North XL

Marketing Information

Natural design

• Enjoy a sophisticated looking case which integrates effortlessly into your living space
• Enhance your gaming station with an FSC-certified oak or walnut front, a faux leather tab and sleek steel or brass details

Gaming ready

• Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
• Make the most of your build with a generous layout compatible with full E-ATX motherboards

Exten...ded cooling

• Supports front radiators up to 420 mm and top radiators up to 360 mm
• Three Aspect 14 PWM fans preinstalled with room to expand up to a total of eight 140 mm or nine 120 mm fans

Type-C interface

Three front USB ports including one USB 3.2 Gen 2×2 Type-C with speeds up to 20Gbps

Ventilated performance

• Natural ventilation through an open front and a stylishly integrated mesh top panel
• The mesh version of the case features a full mesh side panel in addition to the top

Naturally unique

Enjoy a unique finish, with front panel bars cut from FSC-certified oak or walnut

Easy access

Remove the side panels, unclip the front and pop off the top panel using an integrated tab

Build versatility

• Make the most of your building experience with an intuitive interior layout
• Designed for E-ATX / ATX / mATX / mITX motherboards

Specifications
Manufacturer: Fractal Design
Manufacturer Part Number: FD-C-NOR1X-01
Manufacturer Website Address: http://www.fractal-design.com
Brand Name: Fractal Design
Product Line: North XL
Product Name: North XL
Product Type: Gaming Computer Case
Technical Information
Motherboard Supported:

• EATX
• ATX
• Micro ATX
• Mini ITX

Number of Fans Supported: 8
Number of Fans Installed: 3
Fan Size Supported:

• 120 mm
• 140 mm

Installed Fan Size: 140 mm
Installed Fan Size Details: 3 × 140mm
Features: Dust Filter
Bays
Number of Internal 2.5" Bays: 2
Number of Internal 2.5"/3.5" Bays: 2
I/O Expansions
Total Number of Expansion Slots: 7
Interfaces/Ports
Total Number of USB Ports: 3
USB Port Details:

• 2 x USB 3.0
• 1 x USB 3.1 (Gen 2) Type C

Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Microphone: Yes
Physical Characteristics
Color Family: Black
Product Color: Charcoal Black
Product Material:

• Mesh
• Steel
• Brass
• Alloy
• Faux Leather

Cooler Type: Fan Cooler
Maximum CPU Cooler Height: 185 mm
Maximum PSU Length: 290 mm
Maximum GPU Length: 413 mm
Height: 509 mm
Width: 240 mm
Depth: 503 mm
Weight (Approximate): 9.70 kg
