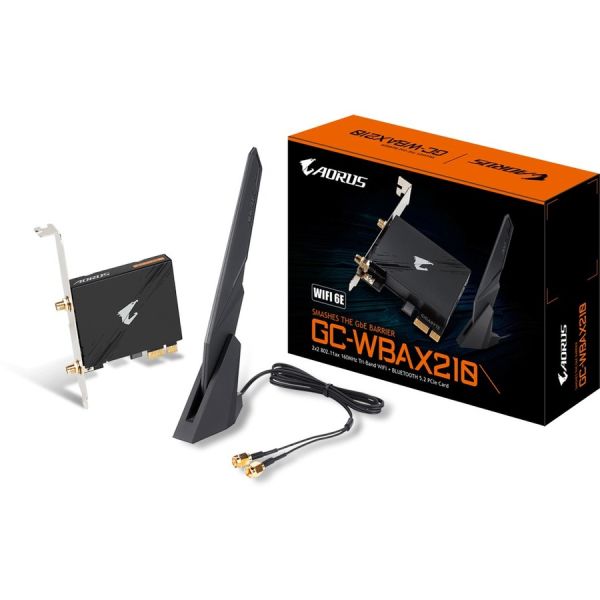

Gigabyte GC-WBAX210 Wi-Fi/Bluetooth Combo Adapter

Marketing Information

Smashes the GbE Barrier!

2x2 802.11ax Tri-Band WIFI + BLUETOOTH 5.2 card GC-WBAX210 is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ax 160MHz Tri-Band WIFI and BLUETOOTH 5.2 connectivity.

AORUS Antenna Supports Tri-Band with Better WIFI Signal

• All new antenna supported Tri-band 802.11ax 2.4GHz / 5GHz / 6GHz.
  Better signal strength compared to traditional antenna design
• AORUS Antenna with smart antenna function for the best WIFI signal transmitting
• Multiple angle tilt and magnetic base for the best signal strength direction and location

WIFI 6E Advantage

Spectrum congestion is huge problem in current WIFI... environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is extended standard to WIFI 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before.

BLUETOOTH Function

Standard : BLUETOOTH 5.2

WIFI Function

Wireless Alliance:

Wi-Fi CERTIFIED 6, CERTIFIED a/b/g/n/ac WMM, WMM-Power Save, WPA3, PMF, Wi-Fi Direct, WIFI Agile Multiband.

IEEE WLAN Standard:

IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d ,e ,g ,h ,I ,k , n ,r ,u ,v ,w ,ac ,ax ; Fine Timing Measurement based on 802.11-2016, Wi-Fi Location R2 (802.11az) HW readiness

Security Features:

Security Methods - WPA2 ; WPA3
Authentication Protocols - 802.1X EAP-TLS,EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA')

Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: GC-WBAX210
Manufacturer Website Address: http://uk.giga-byte.com
Brand Name: Gigabyte
Product Model: GC-WBAX210
Product Name: GC-WBAX210 Wi-Fi/Bluetooth Combo Adapter
Product Type: Wi-Fi/Bluetooth Combo Adapter
Technical Information
Wi-Fi Generation: Wi-Fi 6E
Wireless LAN Standard: IEEE 802.11ax
Bluetooth Standard: Bluetooth 5.2
Network Band: Tri Band
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 6 GHz
Wireless Transmission Speed: 2.34 Gbit/s
Interfaces/Ports
Host Interface: PCI Express x1
Physical Characteristics
Form Factor: Plug-in Card
