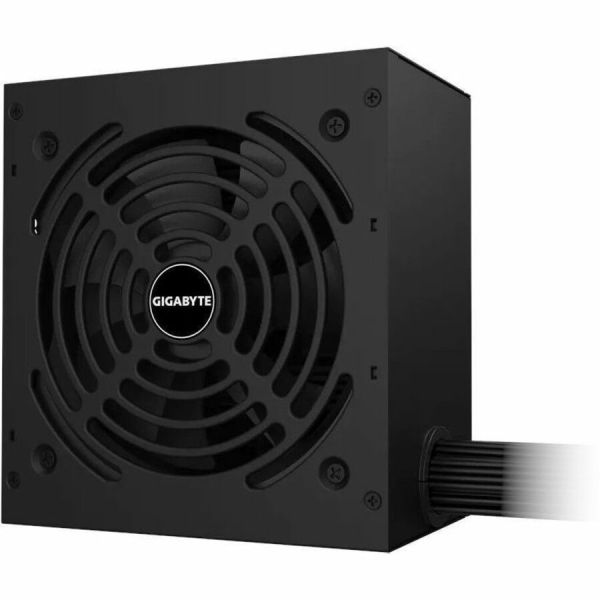

Gigabyte GP-P650G 650W Power Supply

Marketing Information

HIGH QUALITY JAPANESE CAPACITORS

The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.

120MM SILENT HYDRAULIC BEARING (HYB) FAN

The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.

PROTECTION

To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have ob...tained safety certifications from various countries to ensure the consistent and secure functioning of your system.

RELIABLE BLACK FLAT CABLE

The utilization of black flat cables minimizes clutter while enhancing the thermal performance of the chassis

80 PLUS GOLD CERTIFIED

The 80 Plus Gold certification guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

SINGLE +12V RAIL

The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.

COMPACT DESIGN

Through GIGABYTE's exceptional design capabilities and the use of high-quality materials, we have successfully reduced the size of the power supply unit. This compact power supply not only facilitates easier installation into various chassis but also enhances the thermal efficiency within the case.

Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: GP-P650G
Manufacturer Website Address: http://uk.giga-byte.com
Brand Name: Gigabyte
Product Model: GP-P650G
Product Name: GP-P650G 650W Power Supply
Product Type: Power Supply
Technical Information
Specification Compliance: ATX12V
Efficiency: 90%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Hydro Dynamic Bearing
Fan Diameter: 120 mm
Protection Type:

• Over Voltage
• Over Power
• Short Circuit
• Under Voltage
• Over Current
• Over Temperature

Features: Compact
Reliability
MTBF: 100000 Hour
Power Description
Number of +12V Rails: 1
Input Voltage:

• 120 V AC
• 230 V AC

Output Voltage:

• 3.3 V DC
• 5 V DC
• 12 V DC
• -12 V DC
• 5 V SB

Output Voltage Detail:

• 3.3 V DC @ 18 A
• 5 V DC @ 15 A
• 12 V DC @ 54 A
• -12 V DC @ 0.3 A
• 5 V DC @ 3 A

Input Frequency: 60 Hz
Interfaces/Ports
Number of SATA Power Connectors: 6
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 4
Number of (4+4 pin) CPU Power Connectors: 2
Physical Characteristics
Form Factor: Internal
Height: 150 mm
Width: 140 mm
Depth: 86 mm
