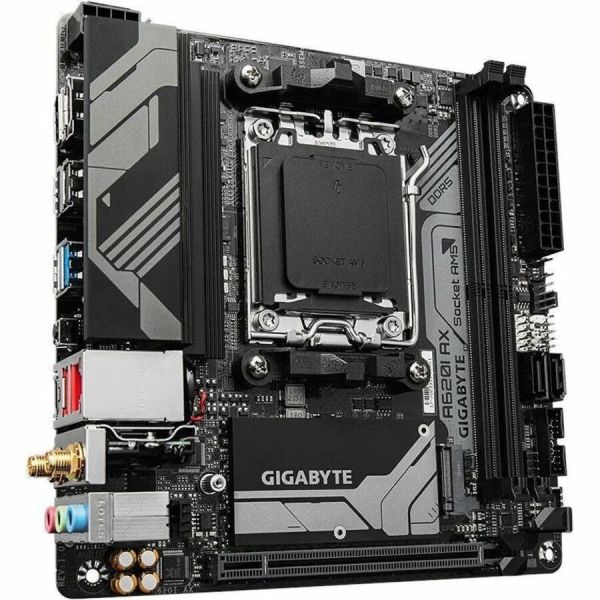

Gigabyte Ultra Durable A620I AX Gaming Desktop Motherboard

Marketing Information

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design 5+2+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+2+1 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond

GIGABYTE is offering a tested and proven platfo...rm that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!

• STEP 1:Plug 24pin & 8pin power supply cable on motherboard
• STEP 2:Download motherboard BIOS file and rename to ""gigabyte.bin"" , save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
• STEP 3:Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

• Cooling Features
• High Current Support:Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control:Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode:Slope/Stair dual mode for different user scenario
• Fan Stop:Fan can stop completely below users' specified temperature point

Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: A620IAX
Manufacturer Website Address: http://uk.giga-byte.com
Brand Name: Gigabyte
Product Line: Ultra Durable
Product Model: A620I AX
Product Name: Ultra Durable A620I AX Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: A620
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported:

• Ryzen 7
• Ryzen 5

Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 96 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 4800 MHz
• 4400 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1

Video
Onboard Video: CPU Dependent Video
Graphics Controller Model: Radeon Graphics
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 1
PCI Express Standard: PCI Express 4.0
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 3
Number of USB 3.2 Gen 1 Ports: 1
Number of USB 3.2 Gen 2 Type-A Ports: 1
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 5
Physical Characteristics
Form Factor: Mini ITX
Width: 170 mm
Depth: 170 mm
