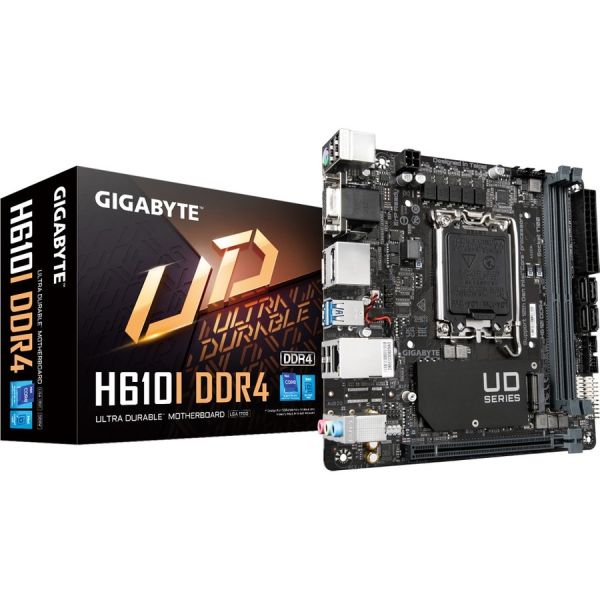

Gigabyte Ultra Durable H610I DDR4 (rev. 1.0) rev. 1.1 Desktop Motherboard

Marketing Information

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0 Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6

• Supports 12th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 4+1+1 Hybrid Digital VRM Design
• Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

Cleaner and more efficient power delivery ...to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

• 4+1+1 Phases DrMOS.
• Solid capacitors to improve transient response and minimize oscillation.
• Solid Pin CPU Power Connector.

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: H610I DDR4
Manufacturer Website Address: http://uk.giga-byte.com
Brand Name: Gigabyte
Product Line: Ultra Durable
Product Model: H610I DDR4
Product Name: Ultra Durable H610I DDR4 (rev. 1.0) rev. 1.1 Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: H610
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported:

• Pentium Gold
• Celeron
• Core i5
• Core i7
• Core i9
• Core i3

Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 3200 MHz
• 3000 MHz
• 2933 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

I/O Controller
Controller Type: Serial ATA/600
Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Physical Characteristics
Form Factor: Mini ITX
Width: 170 mm
Depth: 170 mm
