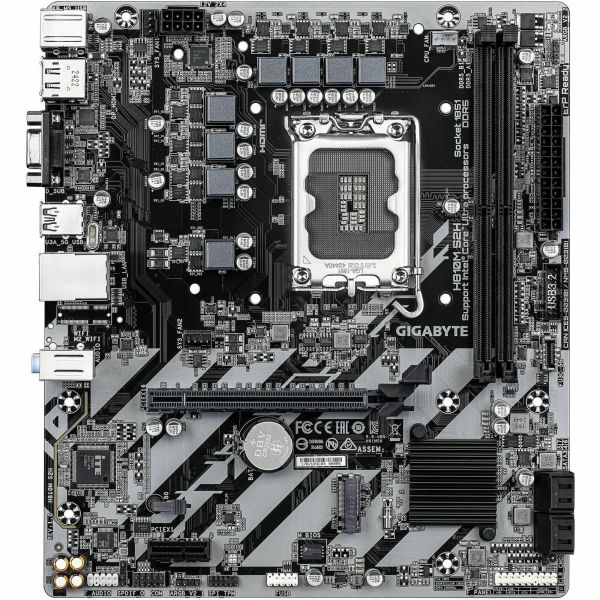

GIGABYTE Ultra Durable H810M S2H Gaming Desktop Motherboard

Marketing Information

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Hybrid VRM Design

The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

Smart Fan 6Cool. Quiet. Customized.

Superior cooling performance and whisper-quiet operation for your gaming rig.

GbE LAN

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

PCIe 4.0 Hardware Design

Featurin...g PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

Hi-Fi AudioHigh-End Audio CapacitorsAudio Noise Guard

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ Debug Zone

Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

EZ-Latch Designs

User-friendly designs simplifying the assembly process.

UC BIOS

Restructured with user-centered and intuitive performance adjustment mechanisms.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-FLASH Auto Scan

The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: H810M S2H
Manufacturer Website Address: http://uk.giga-byte.com
Brand Name: GIGABYTE
Product Line: Ultra Durable
Product Model: H810M S2H
Product Name: Ultra Durable H810M S2H Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: H810
Total Processor Supported: 1
Processor Socket: Socket LGA-1851
Processor Supported: Core Ultra
Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 6400 MHz
• 5600 MHz

Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 2
PCI Express Standard:

• PCI Express 4.0
• PCI Express 3.0

Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 5
Number of USB 3.2 Gen 1 Ports: 1
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 244 mm
Depth: 215 mm
Miscellaneous
Brand Compatibility: Intel
