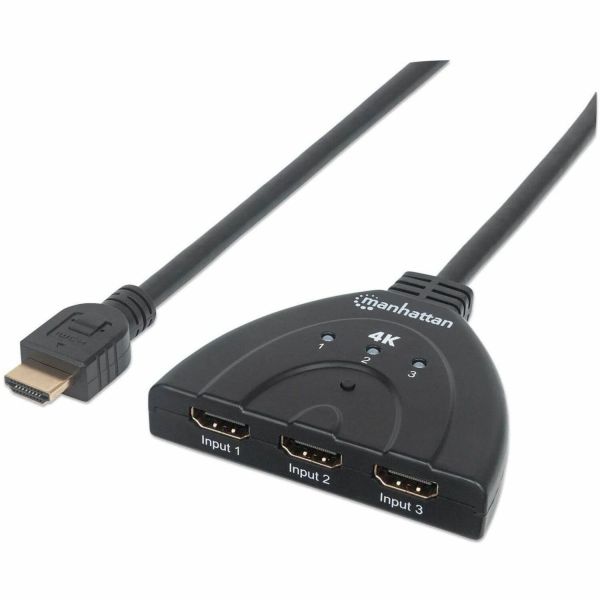

Manhattan 4K 3-Port HDMI Switch

Marketing Information

Easily connect multiple HDMI sources to a single display.

The Manhattan 4K 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources - including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices - to a single Ultra-High-Definition (UHD) display.

Flexible Solution for Many HD Applications

With the increased number of high-definition media devices, the Manhattan 4K 3-Port HDMI Switch expands the connectivity options for your UHDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it offers a switc...hing button so you can manually select sources when more than one UHD video source is on at the same time.

Best Possible Image Quality

Full compliance with HDMI and HDCP 2.2/1.4 ensures the Manhattan 4K 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 4K resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.

Features:

• Connects up to three Ultra-High-Definition (UHD) video sources to a single HDMI display
• Supports automatic switching (when an UHD signal is detected) and manual switching (between sources with the push of a button)
• 4K@60Hz resolution, full 3D video, Deep Color and High Dynamic Range (HDR)
• Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
• Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling and YCbCr 4:2:0 color formatting
• Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
• Works with PlayStation and Xbox game systems, Blu-ray players, set topboxes, satellite receivers and more
• HDCP compliant
• Plug and play
• Plug and play: no special setup, power or remote required
• Integrated HDMI cable
• Gold-plated contacts
• Gold-plated contacts for corrosion-free connections
• Three-year warranty

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 207874
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: 4K 3-Port HDMI Switch
Package Type: Retail
Product Type: Audio/Video Switchbox
Technical Information
Connectivity Technology: Cable
Device Supported:

• Blu-ray Disc Player
• Gaming Console
• Set-top Box
• Satellite Receiver
• Display
• Projector

Number of Displays Supported: 1
Video
Graphics Modes:

• 4K
• 4K UHD
• 2K

Maximum Video Resolution: 4096 x 2160
Scan Format: 1080p
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of USB Ports: 1
Number of HDMI Inputs: 3
Number of HDMI Outputs: 1
Media & Performance
Maximum Operating Distance: 10 m
Physical Characteristics
Height: 15 mm
Width: 61 mm
Depth: 82 mm
Weight (Approximate): 90 g
Miscellaneous
Package Contents:

• 4K 3-Port HDMI Switch
• USB power cable
• Quick Instruction Guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2
Warranty
Limited Warranty: 3 Year
